Connector End View (C1645) - GENERATOR CURRENT SENSOR

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1645	GENERATOR CURRENT SENSOR	GY	14305	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	LE423 (GN-VT)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1)	N/A
2	RE407 (YE-VT)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)	N/A
3	VDC61 (VT-GN)	20	SENSOR - BATTERY MONITORING SYSTEM # ALTERNATOR	N/A

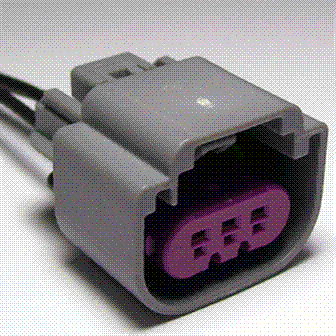

Available Pigtail Kits

Pigtail Kit Part Number WPT-1413

Courtesy of FORD MOTOR COMPANY

Service Part Number:

EU2Z-14S411-UA

Gauge:

18

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses:

• Sensor - Battery Current
• Sensor - Brake Vacuum
• Sensor - Fuel Tank Pressure Transducer
