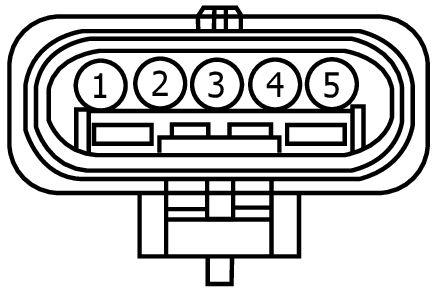

Connector End View (C1631) - UNIVERSAL HEATED OXYGEN SENSOR (HO2S) 11

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1631	UNIVERSAL HEATED OXYGEN SENSOR (HO2S) 11	BK	12C508	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	LE448 (GY-BU)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST (UREF-11)	N/A
2	VE826 (BN-VT)	20	SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2SN-11)	N/A
3	LE451 (BN-YE)	20	CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SIP-11)	N/A
4	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR 2)	N/A
5	CE235 (GN-BN)	18	CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 1ST OR UNIQUE (HTR11)	N/A

Available Pigtail Kits

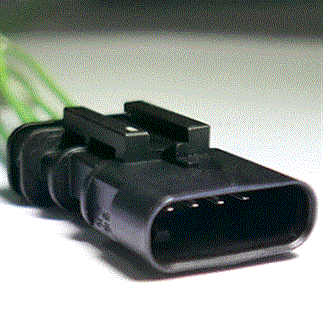

Pigtail Kit Part Number WPT-1657

Courtesy of FORD MOTOR COMPANY

Service Part Number:

MU2Z-14S411-DA

Gauge:

18

Pin material:

Silver

Cavities:

5

Vehicle Uses:

• Sensor - O2 (HEGO/ EGO)
