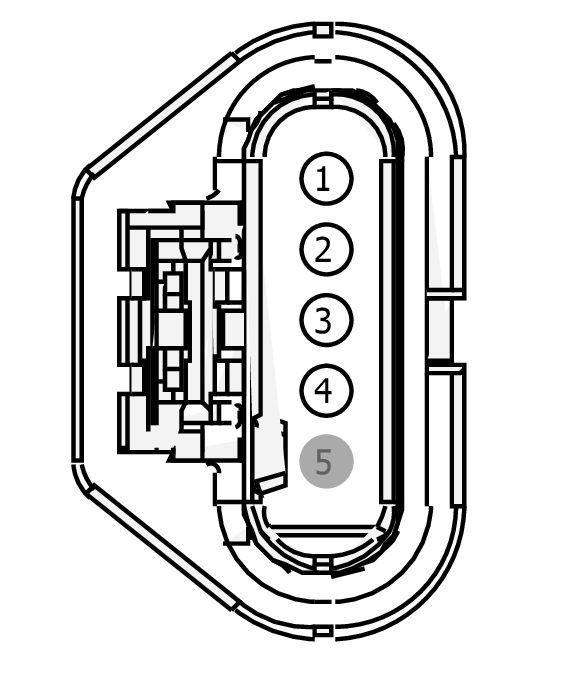

Connector End View (C1619) - NOX #11 SENSOR MODULE

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1619	NOX #11 SENSOR MODULE	BK	14290/91A000	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBB70 (YE-BU)	17	FUSE - 70 OR CIRCUIT BREAKER	N/A
2	VE253 (YE-GY)	20	CTRL MOD. - POWERTRAIN # GLOW PLUG CONTROL CAN BUS HIGH	N/A
3	VE254 (BN-WH)	20	CTRL MOD. - POWERTRAIN # GLOW PLUG CONTROL CAN BUS LOW	N/A
4	GD121 (BK-YE)	17	GROUND - FENDER FRONT LEFT # 2ND POINT	N/A
5	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1504

Courtesy of FORD MOTOR COMPANY

Service Part Number:

HU2Z-14S411-LA

Gauge:

18

Pin material:

Silver

Cavities:

5

Vehicle Uses:

• Actuator - Turbocharger Waste Gate
• Module - NOX Sensor
• Solenoid - EGR Cooler Bypass
• Valve - EGR
