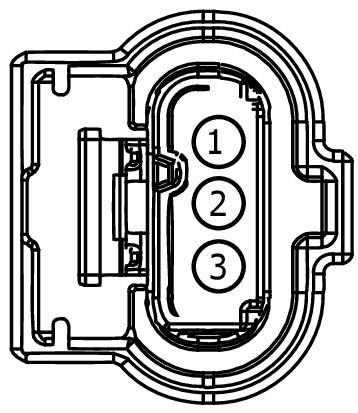

Connector End View (C1608) - FRONT ACTIVE PARK ASSIST SENSOR RH

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1608	FRONT ACTIVE PARK ASSIST SENSOR RH	15K867			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	LMP06 (VT-GY)	22	CTRL MOD. - PARKING AID # SENSORS FRONT +	N/A
2	VMP21 (WH-BN)	22	SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT RIGHT SIDE	N/A
3	RMP06 (YE-OG)	22	CTRL MOD. - PARKING AID # SENSORS FRONT -	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1308

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AVA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:
