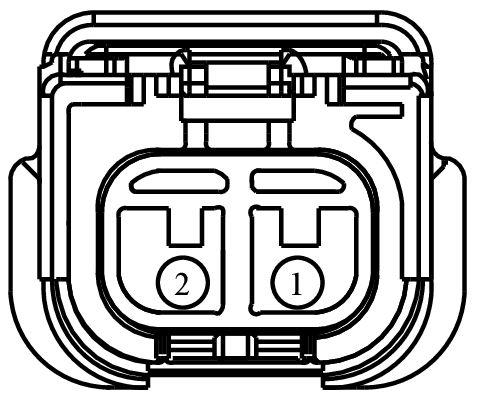

Connector End View (C1602) - IGNITION COIL-ON-PLUG 2

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1602	IGNITION COIL-ON-PLUG 2	BK	12C508	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CE304 (YE-BU)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP-B)	N/A
2	CBK04 (VT)	18	FUSE - 4 OR CIRCUIT BREAKER (VPWR 4)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1133

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-FA

Gauge:

16

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Coil - Ignition
