Connector End View (C1587) - INLINE

Connector Viewer - 150

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C1587	INLINE	DK GY	12C50814290/91A000	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

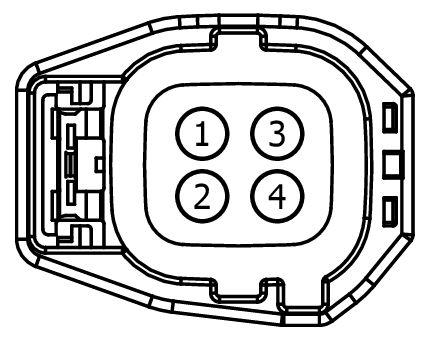

MALE

Harness

12C508

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CE243 (GY-VT)	14	N/A
2	CE244 (BU-BN)	14	N/A
3	CE245 (VT-WH)	14	N/A
	4	CE246 (YE-BU)	14	N/A

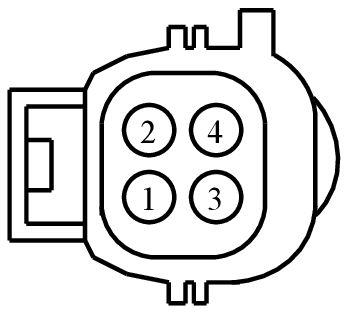

FEMALE

Harness

14290/91A000

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CE243 (GY-VT)	14	N/A
2	CE244 (BU-BN)	14	N/A
3	CE245 (VT-WH)	14	N/A
	4	CE246 (YE-BU)	14	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1012

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-PA

Gauge:

14

Pin material:

Tin

Cavities:

4

Vehicle Uses:

• Motor - Windshield Wiper
• Radio - Amplifier
