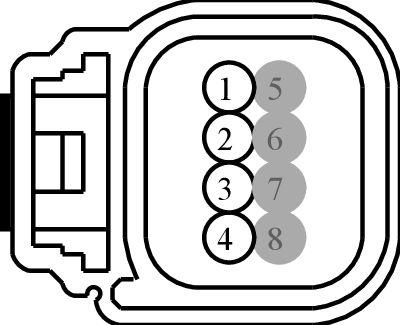

Connector End View (C1582) - CRUISE CONTROL MODULE (CCM)

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1582	CRUISE CONTROL MODULE (CCM)	BK	14B446	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBB61 (BU-GY)	20	FUSE - 61 OR CIRCUIT BREAKER	N/A
2	VMF05 (GY-BU)	20	CTRL MOD. - FORWARD SENSING # FORWARD LOOKING RADAR CAN BUS LOW	N/A
3	VMF04 (BN-BU)	20	CTRL MOD. - FORWARD SENSING # FORWARD LOOKING RADAR CAN BUS HIGH	N/A
4	GD120 (BK-GN)	20	GROUND - FENDER FRONT LEFT	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A

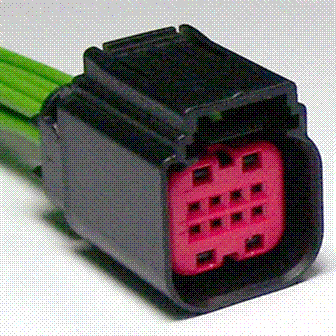

Available Pigtail Kits

Pigtail Kit Part Number WPT-1198

Courtesy of FORD MOTOR COMPANY

Service Part Number:

4U2Z-14S411-LC

Gauge:

18

Pin material:

Silver

Cavities:

8

Vehicle Uses:

• Module - Remote Keyless Entry
• Switch - Keyless Entry
