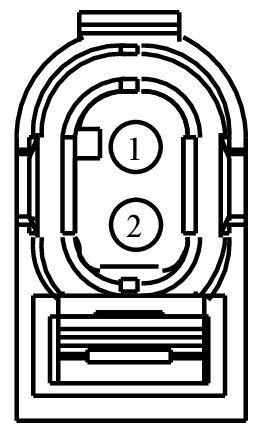

Connector End View (C1563) - FUEL INJECTOR 3

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1563	FUEL INJECTOR 3	BK	9F666	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CE207 (VT-GY)	.75	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) +	N/A
2	RE207 (GN-VT)	.75	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) -	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1371

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-ANA

Gauge:

18

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Fuel Injector
