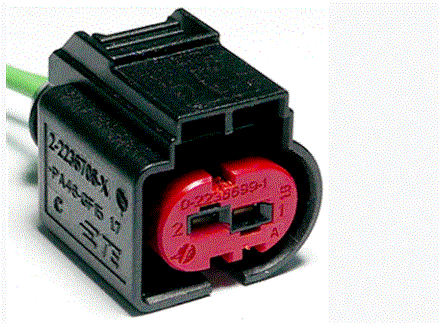

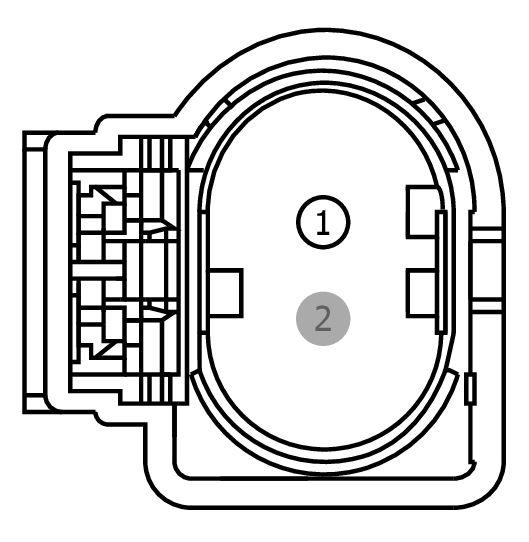

Connector End View (C1558B) - GENERATOR

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1558B	GENERATOR	14305			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE181 (WH-GN)	20	CTRL MOD. - LIN BUS # POWERTRAIN CONTROL MODULE 1	N/A
2	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1656

Courtesy of FORD MOTOR COMPANY

Service Part Number:

LU2Z-14S411-ACA

Gauge:

16

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Alternator
• Fuel Injector
• Module - Alternator Control
• Pump - Fuel Injection
