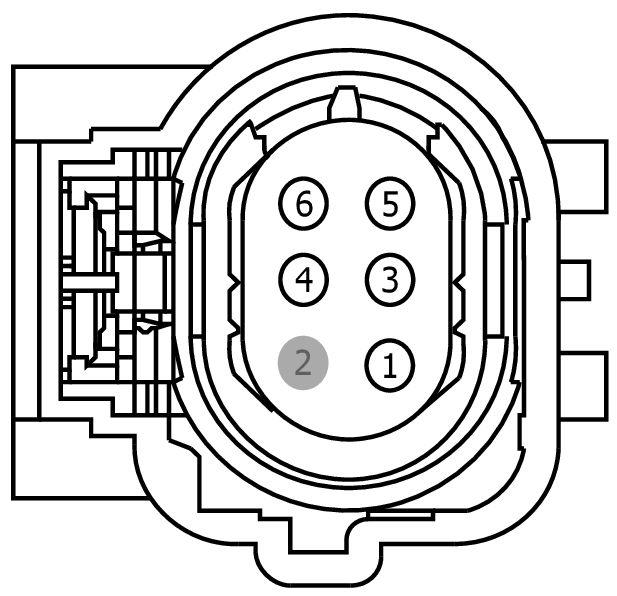

Connector End View (C1513) - ELECTRONIC THROTTLE CONTROL (ETC)

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1513	ELECTRONIC THROTTLE CONTROL (ETC)	12C508			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	LE134 (YE)	20	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF)	N/A
2	*	*	Not Used	N/A
3	RE134 (BU-OG)	20	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN)	N/A
4	CE426 (BU-GN)	18	CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-)	N/A
5	VE818 (BN)	20	SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1-NS)	N/A
6	CE412 (YE-VT)	18	CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1389

Courtesy of FORD MOTOR COMPANY

Service Part Number:

EU2Z-14S411-FA

Gauge:

18

Pin material:

Tin (greased)

Cavities:

6

Vehicle Uses:

• Control - Electronic Throttle
• Module - EGR System
• Sensor - O2 (HEGO/ EGO)
