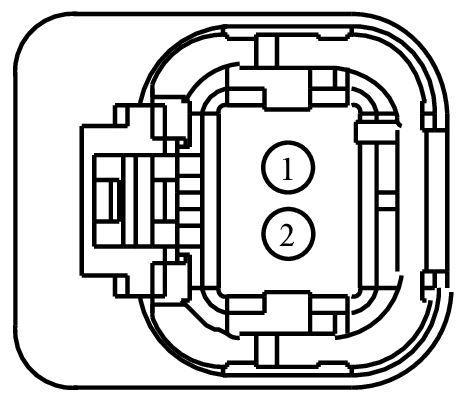

Connector End View (C1470) - POSITIVE CRANKCASE VENTILATION (PCV) VALVE
Connector Viewer - 150
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1470 |
POSITIVE CRANKCASE VENTILATION (PCV) VALVE |
BK |
12C508 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
GD121 (BK-YE) |
18 |
GROUND - FENDER FRONT LEFT # 2ND POINT |
N/A |
| 2 |
CE328 (YE-VT) |
18 |
CTRL MOD. - POWERTRAIN # POS. CRANKCASE VENTIL. HEATER FITTING (PCVHF) |
N/A |
