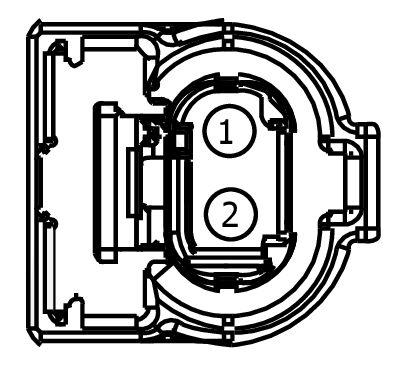

Connector End View (C1466) - FRONT IMPACT SENSOR, PASSENGER SIDE

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1466	FRONT IMPACT SENSOR, PASSENGER SIDE	14290			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VR214 (WH-BU)	20	SENSOR - IMPACT FRONT 2ND	N/A
2	RR130 (GN-BU)	20	CTRL MOD. - SENSOR IMPACT FRONT 2ND	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1469

Courtesy of FORD MOTOR COMPANY

Service Part Number:

GU2Z-14S411-KA

Gauge:

18

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Sensor - Side Impact
• Sensor - Transfer Case Temperature
• Sensor - Transmission Fluid Temperature
• Solenoid - Variable Oil Pump Control
