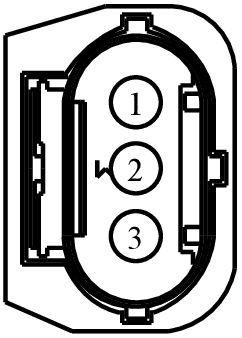

Connector End View (C1463B) - POWER STEERING CONTROL MODULE (PSCM)

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1463B	POWER STEERING CONTROL MODULE (PSCM)	BK	3C221	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VDB25 (GN-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	N/A
2	VDB26 (GY-BU)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	N/A
3	CBB65 (WH-OG)	20	FUSE - 65 OR CIRCUIT BREAKER	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1105

Courtesy of FORD MOTOR COMPANY

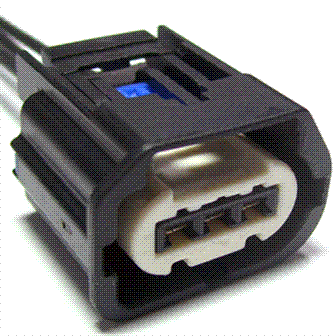

Service Part Number:

AU2Z-14S411-APA

Gauge:

16

Pin material:

Tin

Cavities:

3

Vehicle Uses:

• Module - Power Steering
