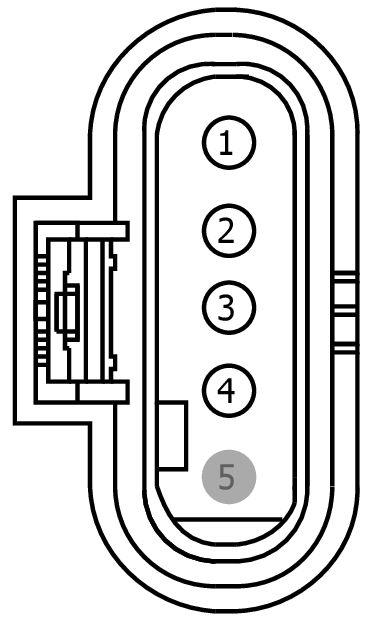

Connector End View (C1361) - NOX #12 SENSOR MODULE

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1361	NOX #12 SENSOR MODULE	14305			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBB70 (YE-BU)	17	FUSE - 70 OR CIRCUIT BREAKER	N/A
2	VE253 (YE-GY)	20	CTRL MOD. - POWERTRAIN # GLOW PLUG CONTROL CAN BUS HIGH	N/A
3	VE254 (BN-WH)	20	CTRL MOD. - POWERTRAIN # GLOW PLUG CONTROL CAN BUS LOW	N/A
4	GD121 (BK-YE)	17	GROUND - FENDER FRONT LEFT # 2ND POINT	N/A
5	*	*	Not Used	N/A

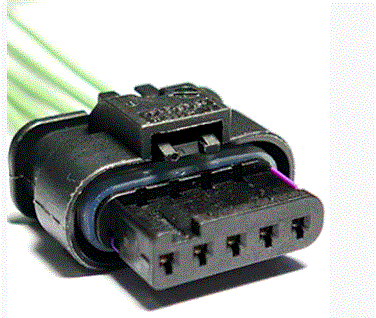

Available Pigtail Kits

Pigtail Kit Part Number WPT-1672

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-JB

Gauge:

18

Pin material:

Silver

Cavities:

5

Vehicle Uses:

• Module - NOX Sensor
• Valve - EGR

Pigtail Kit Part Number WPT-1516

Service Part Number:

JU2Z-14S411-JA

Gauge:

20

Pin material:

Silver

Cavities:

5

Vehicle Uses:

• Module - NOX Sensor
