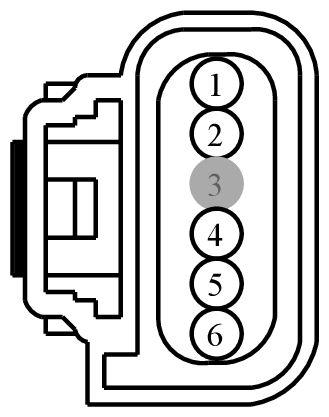

Connector End View (C1306) - NEUTRAL POSITION SENSOR

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1306	NEUTRAL POSITION SENSOR	BK	14305	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	LE424 (YE-GN)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF)	N/A
2	LETB2 (BN-GN)	20	SENSOR - SELECTED GEAR (SGS) SHIFT POSITION 1	N/A
3	*	*	Not Used	N/A
4	LETB3 (GY-BN)	20	SENSOR - SELECTED GEAR (SGS) SHIFT POSITION 2	N/A
5	CET47 (BU)	20	SWITCH - REVERSE (RS)	N/A
6	RET71 (GY-VT)	20	CTRL MOD. - POWERTRAIN # SENSOR GEAR NEUTRAL -	N/A

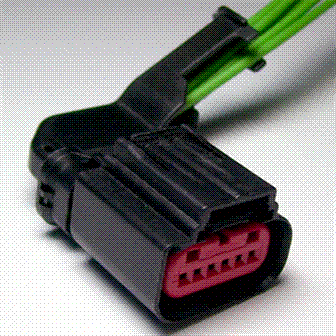

Available Pigtail Kits

Pigtail Kit Part Number WPT-1241

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-FJAC

Gauge:

18

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Control - Electronic Throttle
• Sensor - Mass Air Flow
