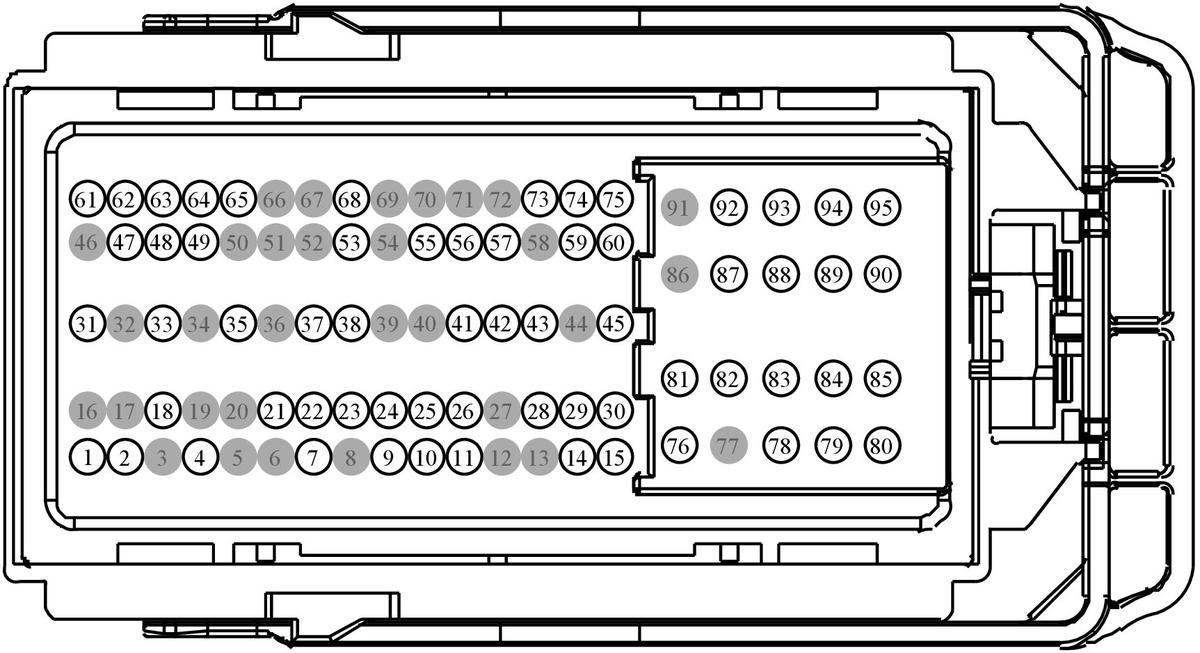

Connector End View (C1235E) - POWERTRAIN CONTROL MODULE (PCM)

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1235E	POWERTRAIN CONTROL MODULE (PCM)	BK	12C508	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RE774 (GN-OG)	20	SENSOR - ENGINE OIL PRESSURE -	N/A
2	RE749 (GY-BU)	20	SENSOR - DIESEL PARTICULATE FILTER DELTA PRESSURE (DPFDP) -	N/A
3	*	*	Not Used	N/A
4	RE232 (VT-WH)	20	CTRL MOD. - POWERTRAIN # FUEL TEMP. SENSOR	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	LE134 (YE)	20	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF)	N/A
8	*	*	Not Used	N/A
9	LE143 (GN-BN)	20	CTRL MOD. - POWERTRAIN # CAMSHAFT SENSOR 1 +	N/A
10	LE329 (BU)	20	CTRL MOD. - POWERTRAIN # MANIFOLD PRESSURE SENSOR (MAP) +	N/A
11	VE749 (YE-VT)	20	SENSOR - DIESEL PARTICULATE FILTER DELTA PRESSURE (DPFDP) +	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	VE727 (BU-BN)	20	SENSOR - FUEL RAIL PRESSURE/INJECTION PRESSURE (FRP) (IPS)	N/A
15	RE238 (BU-BN)	20	CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE SENSOR -	N/A
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	RE476 (GN-OG)	18	CTRL MOD. - POWERTRAIN # VARIABLE GEOMETRY TURBO SIGRTN	N/A
19	*	*	Not Used	N/A
20	*	*	Not Used	N/A
21	LE180 (YE-BU)	20	CTRL MOD. - POWERTRAIN # EXHAUST GAS VALVE POSITION SENSOR +	N/A
22	LE238 (GY)	20	CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE SENSOR +	N/A
23	LE135 (GY-VT)	20	CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKP) +	N/A
24	CE476 (BU-WH)	18	CTRL MOD. - POWERTRAIN # VARIABLE GEOMETRY TURBO VREF	N/A
25	LE232 (GY-YE)	20	CTRL MOD. - POWERTRAIN # FUEL TEMPERATURE SENSOR (VREF)	N/A
26	VE744 (YE-GN)	20	SENSOR - INTERMEDIATE SHAFT SPEED (ISS)	N/A
26	VE774 (YE-GN)	20	SENSOR - ENGINE OIL PRESSURE +	N/A
27	*	*	Not Used	N/A
28	RE804 (GY-BU)	20	SENSOR - MANIFOLD ABSOLUTE PRESSURE THERMISTOR (TMAP) -	N/A
29	VE740 (VT-GY)	20	SENSOR - INTAKE AIR TEMPERATURE (IAT)	N/A
30	RE719 (BN-BU)	20	SENSOR - EXHAUST GAS RECIRCULATION TEMPERATURE-	N/A
31	CE151 (YE)	20	CTRL MOD. - POWERTRAIN # CONTROLLER GLOW PLUGS +	N/A
32	*	*	Not Used	N/A
33	RE134 (BU-OG)	20	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN)	N/A
34	*	*	Not Used	N/A
35	CET40 (GN-OG)	20	SWITCH - TRANSMISSION RANGE # PARK/NEUTRAL (TRSW-PN)	N/A
36	*	*	Not Used	N/A
37	VE706 (BN-BU)	20	SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP1) [CID-H] (CID1) +	N/A
38	RE143 (BN-BU)	20	CTRL MOD. - POWERTRAIN # CAMSHAFT SENSOR 1 -	N/A
39	*	*	Not Used	N/A
40	*	*	Not Used	N/A
41	VE721 (WH-OG)	20	SENSOR - EXHAUST GAS RECIRCULATION VALVE POSITION	N/A
42	VE719 (GY-VT)	20	SENSOR - EXHAUST GAS RECIRCULATION TEMPERATURE	N/A
43	VE804 (GN-BN)	20	SENSOR - MANIFOLD ABSOLUTE PRESSURE THERMISTOR (TMAP) +	N/A
44	*	*	Not Used	N/A
45	RE141 (BN-GN)	20	CTRL MOD. - POWERTRAIN # ENGINE COOLANT TEMPERATURE SENSOR	N/A
46	*	*	Not Used	N/A
47	CE131 (GN)	18	CTRL MOD. - POWERTRAIN # ELECTRIC HEATED THERMOSTAT (ELT)	N/A
48	RE180 (GY-BU)	20	CTRL MOD. - POWERTRAIN # EXHAUST GAS VALVE POSITION SENSOR -	N/A
49	CE513 (VT-GN)	20	CONTROLLER - GLOW PLUG	N/A
50	*	*	Not Used	N/A
51	*	*	Not Used	N/A
52	*	*	Not Used	N/A
53	VE773 (WH-BN)	20	SENSOR - FUEL TEMPERATURE LOW PRESSURE	N/A
54	*	*	Not Used	N/A
55	VE758 (BU-BN)	20	SENSOR - DIESEL PARTICULATE FILTER PRESSURE OUTLET (DPFP_O)	N/A
56	VE820 (GY)	20	SENSOR - THROTTLE POSITION (TPS)	N/A
57	VE716 (YE)	20	SENSOR - ENGINE COOLANT TEMPERATURE (ECT)	N/A
58	*	*	Not Used	N/A
59	VE712 (BU-GY)	18	SENSOR - CYLINDER HEAD TEMPERATURE (CHT)	N/A
60	RE138 (BU-GN)	18	CTRL MOD. - POWERTRAIN # CYLINDER HEAD TEMPERATURE SENSOR	N/A
61	CE328 (YE-VT)	18	CTRL MOD. - POWERTRAIN # POS. CRANKCASE VENTIL. HEATER FITTING (PCVHF)	N/A
62	CE358 (GY-YE)	18	CTRL MOD. - POWERTRAIN # PUMP VARIABLE OIL	N/A
63	RE135 (GN-BN)	20	CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKPN) -	N/A
64	VE711 (YE-VT)	20	SENSOR - CRANKSHAFT POSITION (CKPP) +	N/A
65	VDC46 (BU-BN)	20	CTRL MOD. - GENERATOR (ALTERNATOR) LIN BUS (NON-PCM CONTROLLED)	N/A
66	*	*	Not Used	N/A
67	*	*	Not Used	N/A
68	LE182 (VT-BN)	20	CTRL MOD. - POWERTRAIN # ENGINE OIL PRESSURE TRANSDUCER	N/A
69	*	*	Not Used	N/A
70	*	*	Not Used	N/A
71	*	*	Not Used	N/A
72	*	*	Not Used	N/A
73	VE837 (WH)	18	SENSOR - VARIABLE GEOMETRY TURBO POSITION	N/A
74	CMC14 (BN-YE)	20	SENSOR - LOW LEVEL ENGINE OIL	N/A
75	RE908 (BN-BU)	20	SWITCH - ENGINE OIL LEVEL -	N/A
76	CE256 (BU-OG)	18	CTRL MOD. - POWERTRAIN # FUEL VOLUME CONTROL VALVE (FVCV) +	N/A
77	*	*	Not Used	N/A
78	CE412 (YE-VT)	18	CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+)	N/A
79	RE205 (YE-BU)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) -	N/A
80	RE208 (BU)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) -	N/A
81	RE256 (GY-BU)	18	CTRL MOD. - POWERTRAIN # FUEL VOLUME CONTROL VALVE (FVCV) -	N/A
82	VE836 (VT-GN)	20	SENSOR - WASTEGATE POSITION (WGT_PS)	N/A
83	CE426 (BU-GN)	18	CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-)	N/A
84	CE205 (GN-BU)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) +	N/A
85	CE208 (YE-OG)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) +	N/A
86	*	*	Not Used	N/A
87	CE431 (WH)	18	CTRL MOD. - POWERTRAIN # VARIABLE NOZZLE TURBO MOTOR +	N/A
88	LE139 (BN-WH)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. VALVE +	N/A
89	RE206 (BU-OG)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) -	N/A
90	RE207 (GN-VT)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) -	N/A
91	*	*	Not Used	N/A
92	CE432 (BU)	18	CTRL MOD. - POWERTRAIN # VARIABLE NOZZLE TURBO MOTOR -	N/A
93	RE139 (GY-OG)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. VALVE -	N/A
94	CE206 (GY-YE)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) +	N/A
95	CE207 (VT-GY)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) +	N/A
