Connector End View (C1235B) - POWERTRAIN CONTROL MODULE (PCM)

Connector Viewer - 150

Connector: Description Color Harness Base Part # Service Pigtail
C1235B POWERTRAIN CONTROL MODULE (PCM) BK 14290/91A000 part# N/A Not Available

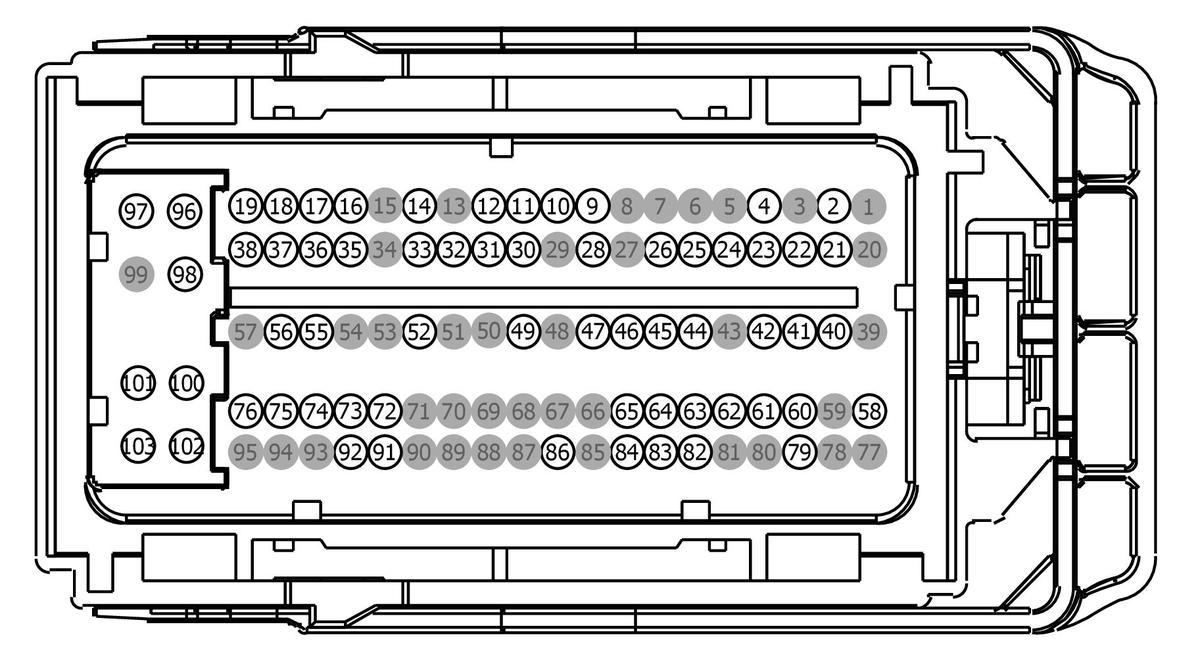

GFDWR129746Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number  Service Part Number  Size
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 * * Not Used N/A
2 CH302 (WH-BN) 20 CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR) N/A
3 * * Not Used N/A
4 RE320 (BU) 20 CTRL MOD. - POWERTRAIN # MASS AIR FLOW SEN. LH BANK OR 1ST BANK (MAFRTN) N/A
5 * * Not Used N/A
6 * * Not Used N/A
7 * * Not Used N/A
8 * * Not Used N/A
9 VE757 (WH) 20 SENSOR - CLUTCH MASTER CYLINDER 2 (CPP2) N/A
10 VE772 (YE-BU) 20 SENSOR - CLUTCH MASTER CYLINDER 1 (CPP1) N/A
11 RH433 (BU-GY) 20 TRANSDUCER - A/C PRESSURE (ACPT) - N/A
12 VE750 (GN-BU) 20 SENSOR - POWERTRAIN AMBIENT TEMP. SENSOR (AAT) N/A
13 * * Not Used N/A
14 LH315 (WH-GN) 20 CTRL MOD. - A/C PRESSURE TRANSDUCER N/A
15 * * Not Used N/A
16 RE823 (GY-YE) 20 SENSOR - WATER IN FUEL - N/A
17 VE740 (VT-GY) 20 SENSOR - INTAKE AIR TEMPERATURE (IAT) N/A
18 LE137 (BU-GY) 20 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2VREF) N/A
19 LE136 (GN-OG) 20 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1VREF) N/A
20 * * Not Used N/A
21 VE530 (GY-BN) 20 CTRL MOD. - AUXILIARY WATER PUMP N/A
22 CDC12 (YE) 20 CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC) N/A
23 CE436 (VT-OG) 20 CTRL MOD. -WAKE UP PCM N/A
24 RET71 (GY-VT) 20 CTRL MOD. - POWERTRAIN # SENSOR GEAR NEUTRAL - N/A
25 LETB3 (GY-BN) 20 SENSOR - SELECTED GEAR (SGS) SHIFT POSITION 2 N/A
26 LETB2 (BN-GN) 20 SENSOR - SELECTED GEAR (SGS) SHIFT POSITION 1 N/A
27 * * Not Used N/A
28 CET47 (BU) 20 SWITCH - REVERSE (RS) N/A
29 * * Not Used N/A
30 VE807 (YE-VT) 20 SENSOR - MASS AIR FLOW LH BANK OR 1ST BANK OR UNIQUE (MAF) N/A
31 RE407 (YE-VT) 20 CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) N/A
32 LET71 (YE-GN) 20 CTRL MOD. - POWERTRAIN # SENSOR GEAR NEUTRAL + N/A
33 LE456 (YE-BU) 20 CTRL MOD. - SENSOR CLUTCH MASTER CYLINDER + N/A
34 * * Not Used N/A
35 VE823 (BU-BN) 20 SENSOR - WATER IN FUEL + N/A
36 RE771 (GY-OG) 20 SENSOR - EXHAUST GAS TEMPERATURE 3 (EGT3) - N/A
37 RE137 (YE-GN) 20 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2RTN) N/A
38 RE136 (VT-GN) 20 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1RTN) N/A
39 * * Not Used N/A
40 VE225 (YE-OG) 20 CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC) N/A
41 CE148 (YE-GY) 18 CTRL MOD. - POWERTRAIN # ENGINE COOLANT BYPASS VALVE N/A
42 CE302 (YE-BU) 20 CTRL MOD. - POWERTRAIN # POWERTRAIN CONTROL RELAY (PCMRC) N/A
43 * * Not Used N/A
44 CR167 (YE-VT) 20 CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS) N/A
45 CCB08 (VT-WH) 20 SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN N/A
46 VE518 (BN-WH) 20 MONITOR - FUEL PUMP (FPM) N/A
47 CES09 (VT-OG) 20 SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) + N/A
48 * * Not Used N/A
49 CDC35 (BU-WH) 20 SWITCH - IGNITION # START N/A
50 * * Not Used N/A
51 * * Not Used N/A
52 RE456 (BU-OG) 20 CTRL MOD. - SENSOR CLUTCH MASTER CYLINDER - N/A
53 * * Not Used N/A
54 * * Not Used N/A
55 VE771 (WH-VT) 20 SENSOR - EXHAUST GAS TEMPERATURE 3 (EGT3) + N/A
56 VE723 (GN-VT) 20 SENSOR - EXHAUST GAS TEMPERATURE 2 (EGT2) + N/A
57 * * Not Used N/A
58 VE462 (WH-BN) 18 CTRL MOD. - POWERTRAIN # VARIABLE A/C COMPRESSOR VALVE N/A
59 * * Not Used N/A
60 CE226 (YE-VT) 20 CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) + N/A
61 CDC54 (WH-GN) 20 CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS) N/A
62 CE226 (YE-VT) 20 CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) + N/A
63 RE141 (BN-GN) 20 CTRL MOD. - POWERTRAIN # ENGINE COOLANT TEMPERATURE SENSOR N/A
64 VDB05 (WH) 20 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW N/A
65 VE253 (YE-GY) 20 CTRL MOD. - POWERTRAIN # GLOW PLUG CONTROL CAN BUS HIGH N/A
66 * * Not Used N/A
67 * * Not Used N/A
68 * * Not Used N/A
69 * * Not Used N/A
70 * * Not Used N/A
71 * * Not Used N/A
72 VE722 (BN) 20 SENSOR - EXHAUST GAS TEMPERATURE 1 (EGT1) (PRE CAT) N/A
73 VE702 (BU-WH) 20 SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2) N/A
74 VE701 (YE-OG) 20 SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1) N/A
75 RE723 (WH-BU) 20 SENSOR - EXHAUST GAS TEMPERATURE 2 (EGT2) - N/A
76 VH433 (VT-OG) 20 TRANSDUCER - A/C PRESSURE (ACPT) + N/A
77 * * Not Used N/A
78 * * Not Used N/A
79 VE203 (YE-GY) 20 CTRL MOD. - POWERTRAIN # FAN CONTROL VARIABLE (FC-V) N/A
80 * * Not Used N/A
81 * * Not Used N/A
82 CBB58 (GY-OG) 20 FUSE - 58 OR CIRCUIT BREAKER N/A
82 CBB66 (BU-WH) 20 FUSE - 66 OR CIRCUIT BREAKER FNA N/A
83 VDB04 (BU) 20 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH N/A
84 VE254 (BN-WH) 20 CTRL MOD. - POWERTRAIN # GLOW PLUG CONTROL CAN BUS LOW N/A
85 * * Not Used N/A
86 VE181 (WH-GN) 20 CTRL MOD. - LIN BUS # POWERTRAIN CONTROL MODULE 1 N/A
87 * * Not Used N/A
88 * * Not Used N/A
89 * * Not Used N/A
90 * * Not Used N/A
91 RE722 (BU-OG) 20 SENSOR - EXHAUST GAS TEMPERATURE 1 (EGT1) (PRE CAT)- N/A
92 VE716 (YE) 20 SENSOR - ENGINE COOLANT TEMPERATURE (ECT) N/A
93 * * Not Used N/A
94 * * Not Used N/A
95 * * Not Used N/A
96 GD121 (BK-YE) 17 GROUND - FENDER FRONT LEFT # 2ND POINT N/A
97 GD121 (BK-YE) 17 GROUND - FENDER FRONT LEFT # 2ND POINT N/A
98 GD121 (BK-YE) 17 GROUND - FENDER FRONT LEFT # 2ND POINT N/A
99 * * Not Used N/A
100 CE193 (GY-OG) 18 CTRL MOD. - POWERTRAIN # CHARGE AIR COOLER COOLANT PUMP CONTROL (CACCPC) N/A
101 CBB67 (GN-BN) 17 FUSE - 67 OR CIRCUIT BREAKER N/A
102 CBB67 (GN-BN) 17 FUSE - 67 OR CIRCUIT BREAKER N/A
103 CBB67 (GN-BN) 17 FUSE - 67 OR CIRCUIT BREAKER N/A
