Connector End View (C1232E) - POWERTRAIN CONTROL MODULE (PCM)

Connector Viewer - 150

Connector: Description Color Harness Base Part # Service Pigtail
C1232E POWERTRAIN CONTROL MODULE (PCM) BK 12C508 part# N/A Not Available

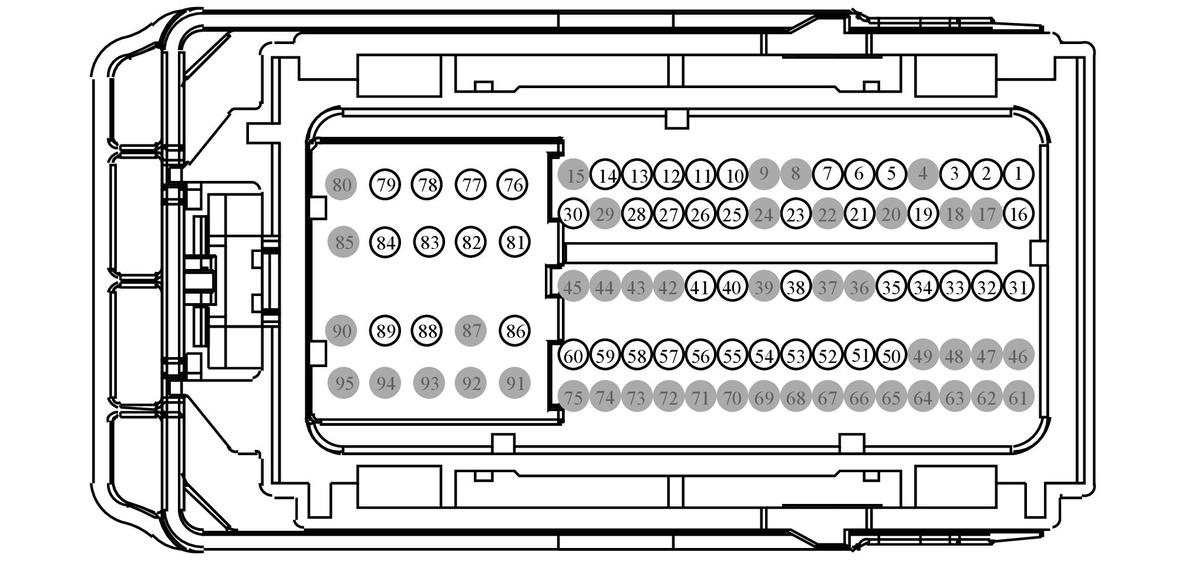

GFDWR129743Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number  Service Part Number  Size
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CE422 (WH-OG) 18 CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 2 (VCT2) N/A
2 VE850 (WH-VT) 18 SENSOR - WASTE GATE CONTROL PRESSURE (WGCP) N/A
3 CE158 (GN-OG) 18 CTRL MOD. - POWERTRAIN # CYLINDER DEACTIVATION VALVE CONTROL BANK 1-1 (CDVC 11) N/A
4 * * Not Used N/A
5 CE421 (VT) 18 CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 1 (VCT1) N/A
6 VE175 (BN-WH) 18 CTRL MOD. - POWERTRAIN # ELECTRONIC COMPRESSOR BYPASS VALVE (ECBV PWM) N/A
7 CE358 (GY-YE) 18 CTRL MOD. - POWERTRAIN # PUMP VARIABLE OIL N/A
8 * * Not Used N/A
9 * * Not Used N/A
10 LE134 (YE) 20 CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) N/A
11 VE801 (VT-OG) 20 SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1P) [KSL1+] N/A
12 RE323 (WH-BN) 20 CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1N) [KSL1-] - N/A
13 RE141 (BN-GN) 18 CTRL MOD. - POWERTRAIN # ENGINE COOLANT TEMPERATURE SENSOR N/A
14 RE429 (GY-OG) 18 CTRL MOD. - POWERTRAIN # VARIABLE RELUCTANCE SENSOR (VRSRTN) (CAMSHAFT POSITION) N/A
15 * * Not Used N/A
16 RE134 (BU-OG) 20 CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN) N/A
17 * * Not Used N/A
18 * * Not Used N/A
19 LE423 (GN-VT) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1) N/A
20 * * Not Used N/A
21 LE182 (VT-BN) 20 CTRL MOD. - POWERTRAIN # ENGINE OIL PRESSURE TRANSDUCER N/A
22 * * Not Used N/A
23 VE711 (YE-VT) 20 SENSOR - CRANKSHAFT POSITION (CKPP) + N/A
24 * * Not Used N/A
25 LE458 (BU-WH) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF2) N/A
26 VE731 (YE-GN) 18 SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12) N/A
27 VE706 (BN) 18 SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP1) [CID-H] (CID1) + N/A
28 VE707 (GN) 18 SENSOR - CAMSHAFT POSITION BANK 2 IN+EX / IN (CMP2) [CID-H] (CID2) + N/A
29 * * Not Used N/A
30 LE135 (GY) 20 CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKP) + N/A
31 VE826 (BN-VT) 18 SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2SN-11) N/A
32 LE448 (GY-BU) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST (UREF-11) N/A
33 LE451 (BN-YE) 18 CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SIP-11) N/A
34 LE452 (GN-WH) 18 CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN MEASURED PUMPING CURRENT 1ST (UO2SIA-11) N/A
35 VE717 (BU-OG) 20 SENSOR - ENGINE OIL TEMPERATURE (EOT) (OIL LEVEL TEMPERATURE QUALITY) N/A
36 * * Not Used N/A
37 * * Not Used N/A
38 VE716 (YE) 20 SENSOR - ENGINE COOLANT TEMPERATURE (ECT) N/A
39 * * Not Used N/A
40 VE712 (BU-GY) 20 SENSOR - CYLINDER HEAD TEMPERATURE (CHT) N/A
41 RE405 (GN-WH) 18 CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A) N/A
42 * * Not Used N/A
43 * * Not Used N/A
44 * * Not Used N/A
45 * * Not Used N/A
46 * * Not Used N/A
47 * * Not Used N/A
48 * * Not Used N/A
49 * * Not Used N/A
50 CE412 (YE-VT) 18 CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+) N/A
51 CE426 (BU-GN) 18 CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-) N/A
52 VE804 (GN-BN) 20 SENSOR - MANIFOLD ABSOLUTE PRESSURE THERMISTOR (TMAP) + N/A
53 RE329 (WH-BU) 20 CTRL MOD. - POWERTRAIN # MANIFOLD PRESSURE SENSOR (MAP) - N/A
54 VE818 (BN) 20 SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1-NS) N/A
55 RE238 (BU-BN) 20 CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE SENSOR - N/A
56 VE718 (BU-GN) 20 SENSOR - ENGINE OIL QUALITY N/A
57 RE406 (GY-VT) 20 CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (T-SIGRTN) (SIGRTN-B) N/A
58 CE305 (BU-OG) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP-C) N/A
59 CE304 (YE-BU) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP-B) N/A
60 CE303 (WH-VT) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP-A) N/A
61 * * Not Used N/A
62 * * Not Used N/A
63 * * Not Used N/A
64 * * Not Used N/A
65 * * Not Used N/A
66 * * Not Used N/A
67 * * Not Used N/A
68 * * Not Used N/A
69 * * Not Used N/A
70 * * Not Used N/A
71 * * Not Used N/A
72 * * Not Used N/A
73 * * Not Used N/A
74 * * Not Used N/A
75 * * Not Used N/A
76 CE235 (GN-BN) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 1ST OR UNIQUE (HTR11) N/A
77 RE206 (BU-OG) 18 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) - N/A
78 RE205 (YE-BU) 18 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) - N/A
79 CE256 (BU-OG) 18 CTRL MOD. - POWERTRAIN # FUEL VOLUME CONTROL VALVE (FVCV) + N/A
80 * * Not Used N/A
81 CE233 (WH-OG) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12) N/A
82 CE206 (GY-YE) 18 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) + N/A
83 CE205 (GN-BU) 18 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) + N/A
84 RE256 (GN-VT) 18 CTRL MOD. - POWERTRAIN # FUEL VOLUME CONTROL VALVE (FVCV) - N/A
85 * * Not Used N/A
86 RE717 (GY-YE) 20 SENSOR - ENGINE OIL TEMPERATURE (EOT) (OIL LEVEL TEMPERATURE QUALITY) N/A
87 * * Not Used N/A
88 CE207 (VT-GY) 18 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) + N/A
89 RE207 (GN-VT) 18 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) - N/A
90 * * Not Used N/A
91 * * Not Used N/A
92 * * Not Used N/A
93 * * Not Used N/A
94 * * Not Used N/A
95 * * Not Used N/A
