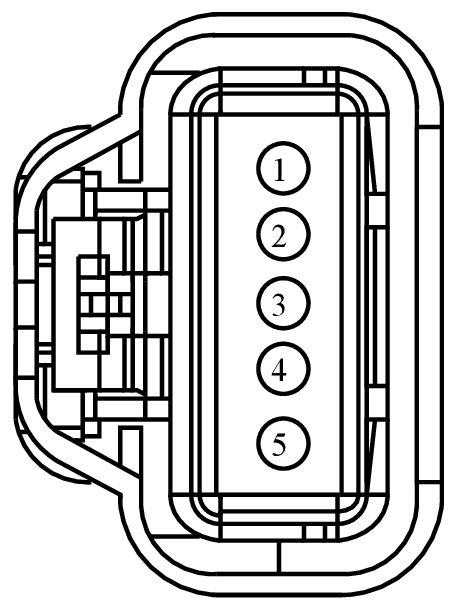

Connector End View (C1189) - ELECTRONIC THROTTLE CONTROL (ETC)
Connector Viewer - 150
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1189 |
ELECTRONIC THROTTLE CONTROL (ETC) |
BK |
12C508 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CE412 (YE-VT) |
18 |
CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+) |
N/A |
| 2 |
CE426 (BU-GN) |
18 |
CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-) |
N/A |
| 3 |
RE134 (BU-OG) |
20 |
CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN) |
N/A |
| 4 |
VE820 (GY) |
20 |
SENSOR - THROTTLE POSITION (TPS) |
N/A |
| 5 |
LE134 (YE) |
20 |
CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) |
N/A |
