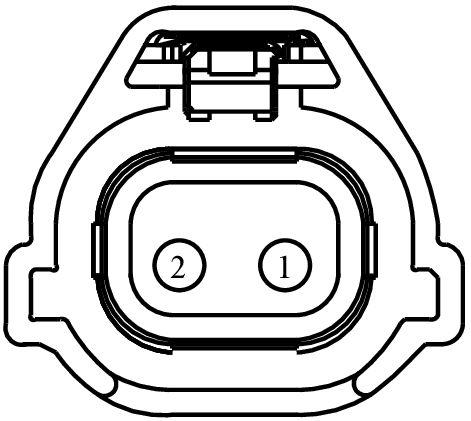

Connector End View (C1183) - FUEL INJECTOR 3

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1183	FUEL INJECTOR 3	GY	14B485	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CE207 (VT-GY)	17	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) +	N/A
2	RE207 (GN-VT)	17	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) -	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1282

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-XA

Gauge:

16

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Fuel Injector
