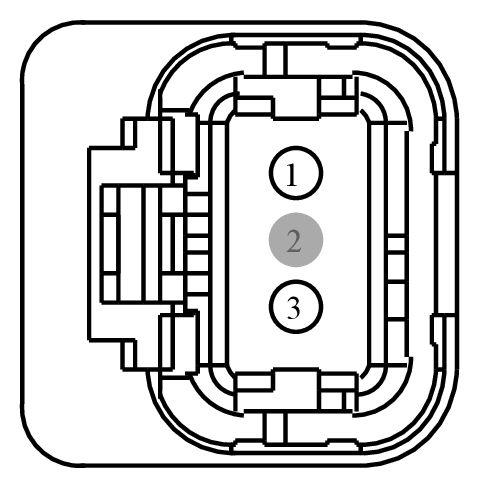

Connector End View (C1149) - ENGINE OIL LEVEL SENSOR
Connector Viewer - 150
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1149 |
ENGINE OIL LEVEL SENSOR |
BK |
14305 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CMC14 (BN-YE) |
20 |
SENSOR - LOW LEVEL ENGINE OIL |
N/A |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
RE908 (BN-BU) |
20 |
SWITCH - ENGINE OIL LEVEL - |
N/A |
