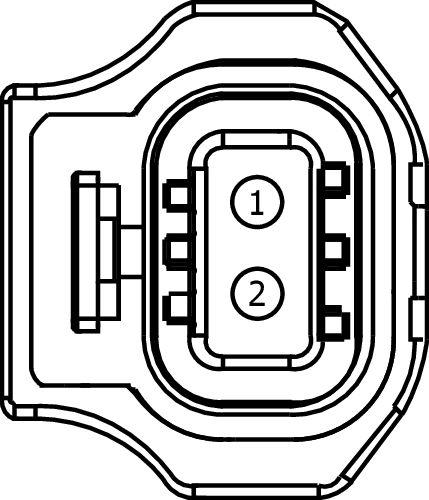

Connector End View (C1142) - FUEL INJECTOR 2
Connector Viewer - 150
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1142 |
FUEL INJECTOR 2 |
12C508 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CE206 (GY-YE) |
16 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) + |
N/A |
| 2 |
RE206 (BU-OG) |
16 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) - |
N/A |
