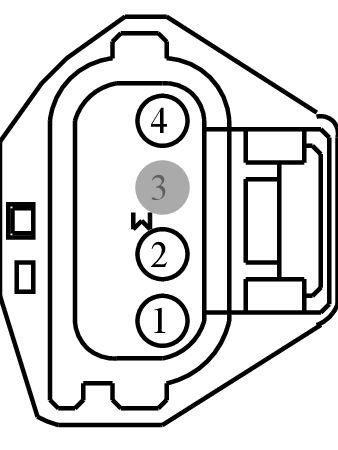

Connector End View (C1140) - MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1140	MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR	DK GY	12C508	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE803 (BU-GN)	20	SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP) +	N/A
2	LE423 (GN-VT)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1)	N/A
3	*	*	Not Used	N/A
4	RE405 (GN-WH)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1293

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-UC

Gauge:

16

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Control - Electronic Throttle
• Sensor - Fuel Rail Temperature
• Sensor - Fuel Tank Pressure Transducer
• Sensor - Manifold Absolute Pressure (MAP)
• Sensor - Manifold Pressure/Intake Temperature
• Sensor - Throttle Position
