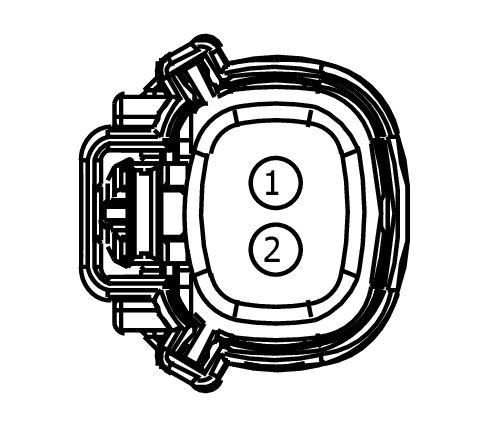

Connector End View (C1139) - FUEL METERING VALVE

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1139	FUEL METERING VALVE	12C508			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CE256 (BU-OG)	18	CTRL MOD. - POWERTRAIN # FUEL VOLUME CONTROL VALVE (FVCV) +	N/A
2	RE256 (GN-VT)	18	CTRL MOD. - POWERTRAIN # FUEL VOLUME CONTROL VALVE (FVCV) -	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1631

Service Part Number:

EU2Z-14S411-MB

Gauge:

16

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Lamp - Fog/Driving
• Motor - Electric Water Pump
• Motor - Long Travel
• Pump - Fuel Injection
• Solenoid - Fuel Volume Regulator Control
• Valve - Fuel Metering
• Valve - Vacuum On Demand Auto Shutoff
