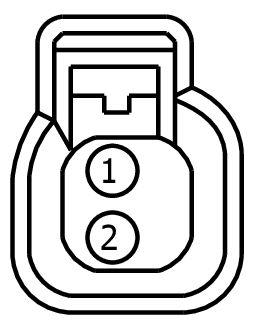

Connector End View (C1102) - HORN RH

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1102	HORN RH	WH	14290/91A000	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	GD124 (BK-VT)	17	GROUND - FENDER FRONT RIGHT # 2ND POINT	N/A
2	CRH01 (YE-RD)	17	RELAY - HORN	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1051

Courtesy of FORD MOTOR COMPANY

Service Part Number:

5U2Z-14S411-ZB

Gauge:

16

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Fuel Injector
• Horn
• Switch - Backup Lamp
• Switch - Hood Ajar
