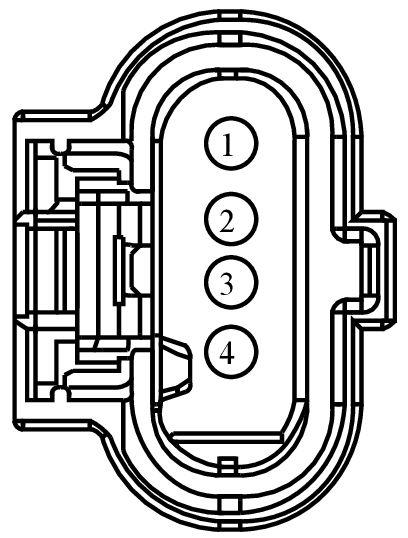

Connector End View (C1087) - MANIFOLD ABSOLUTE PRESSURE AND TEMPERATURE (MAPT) SENSOR

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1087	MANIFOLD ABSOLUTE PRESSURE AND TEMPERATURE (MAPT) SENSOR	BK	12C508	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE803 (BU-BN)	18	SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP) +	N/A
1	RE329 (WH-BU)	20	CTRL MOD. - POWERTRAIN # MANIFOLD PRESSURE SENSOR (MAP) -	1.0L	N/A
2	LE238 (GY)	18	CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE SENSOR +	N/A
2	LE458 (BU-WH)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF2)	1.0L	N/A
3	VE740 (VT-GY)	18	SENSOR - INTAKE AIR TEMPERATURE (IAT)	N/A
3	VE804 (GN-BN)	20	SENSOR - MANIFOLD ABSOLUTE PRESSURE THERMISTOR (TMAP) +	1.0L	N/A
4	RE406 (GY-VT)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (T-SIGRTN) (SIGRTN-B)	N/A
4	RE405 (GN-WH)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A)	1.0L	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1537

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-ACA

Gauge:

18

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Module - Differential Oil Temperature
• Module - Particulate Matter Bank Sensor
• Module - Reductant Quality
• Noise Generator
• Sensor - Fuel Rail Pressure and Temperature
• Sensor - Manifold Pressure/Intake Temperature
• Sensor - Turbo Intake Pressure/Temperature
• Valve - Active Exhaust Solenoid
