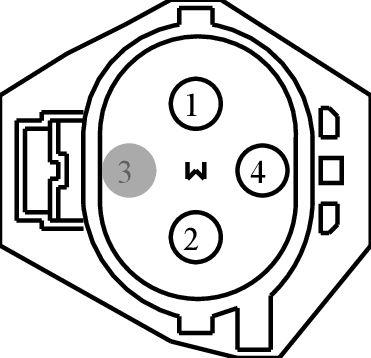

Connector End View (C1048) - ENGINE COOLING FAN MODULE
Connector Viewer - 150
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1048 |
ENGINE COOLING FAN MODULE |
14290/91A000 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CBB84 (VT-RD) |
10 |
FUSE - 84 OR CIRCUIT BREAKER |
N/A |
| 2 |
GD120 (BK-GN) |
10 |
GROUND - FENDER FRONT LEFT |
N/A |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
VE203 (YE-GY) |
20 |
CTRL MOD. - POWERTRAIN # FAN CONTROL VARIABLE (FC-V) |
N/A |
