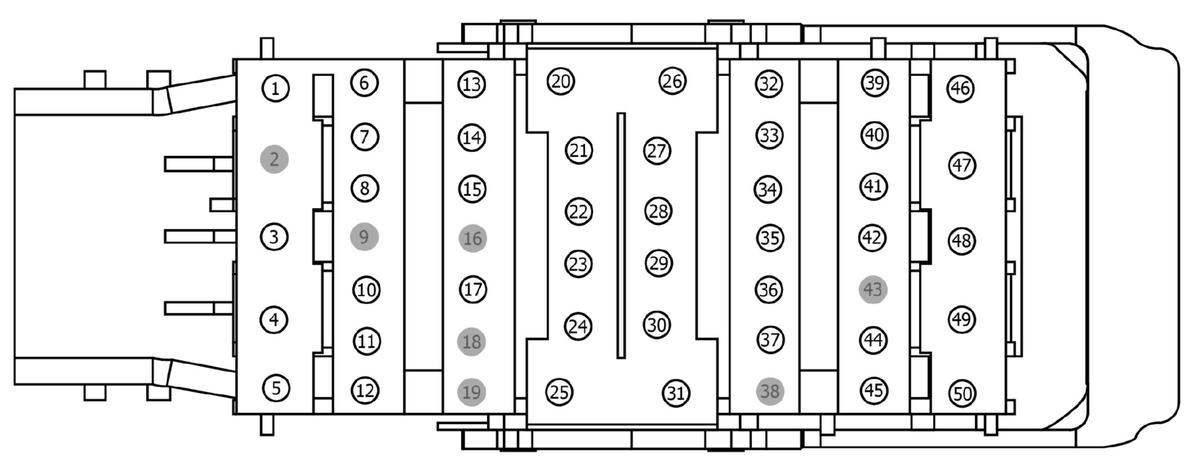

Connector End View (C1035B) - BATTERY JUNCTION BOX (BJB)

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1035B	BATTERY JUNCTION BOX (BJB)	BK	14290/91A000	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBB04 (VT-RD)	14	FUSE - 4 OR CIRCUIT BREAKER	N/A
1	CBB04 (VT-RD)	17	FUSE - 4 OR CIRCUIT BREAKER	N/A
2	*	*	Not Used	N/A
3	CDC64 (WH-BU)	20	RELAY - RUN ACCESSORY	N/A
4	CBB89 (VT-GY)	12	FUSE - 89 OR CIRCUIT BREAKER	N/A
5	CBB07 (GN-BU)	17	FUSE - 7 OR CIRCUIT BREAKER	N/A
6	CBB10 (YE-OG)	14	FUSE - 10 OR CIRCUIT BREAKER	N/A
7	CRH04 (VT-GN)	20	CTRL MOD. - RELAY HORN	N/A
8	CBB11 (BN)	14	FUSE - 11 OR CIRCUIT BREAKER	N/A
9	*	*	Not Used	N/A
10	CBB06 (WH-BU)	17	FUSE - 6 OR CIRCUIT BREAKER	N/A
11	CBB12 (GN-WH)	22	FUSE - 12 OR CIRCUIT BREAKER	N/A
12	CBB13 (GY-BN)	17	FUSE - 13 OR CIRCUIT BREAKER	N/A
13	CBB20 (YE-VT)	14	FUSE - 20 OR CIRCUIT BREAKER	N/A
14	CE302 (YE-BU)	20	CTRL MOD. - POWERTRAIN # POWERTRAIN CONTROL RELAY (PCMRC)	N/A
15	CBB21 (BU-GY)	14	FUSE - 21 OR CIRCUIT BREAKER	N/A
16	*	*	Not Used	N/A
17	CBB22 (GN-OG)	17	FUSE - 22 OR CIRCUIT BREAKER	N/A
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	SBB29 (GY-RD)	12	FUSE - 29 OR CIRCUIT BREAKER	N/A
21	CH302 (WH-BN)	20	CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR)	N/A
22	SBB31 (WH-RD)	17	FUSE - 31 OR CIRCUIT BREAKER	N/A
23	SBB32 (VT-RD)	20	FUSE - 32 OR CIRCUIT BREAKER	N/A
24	SBB33 (RD)	16	FUSE - 33 OR CIRCUIT BREAKER	N/A
25	SBB34 (YE-RD)	12	FUSE - 34 OR CIRCUIT BREAKER	N/A
26	SBB41 (RD)	10	FUSE - 41 OR CIRCUIT BREAKER	N/A
27	SBB42 (YE-RD)	12	FUSE - 42 OR CIRCUIT BREAKER	N/A
28	SBB43 (BU-RD)	18	FUSE - 43 OR CIRCUIT BREAKER	N/A
29	SBB44 (GN-RD)	20	FUSE - 44 OR CIRCUIT BREAKER	N/A
30	SBB45 (GY-RD)	14	FUSE - 45 OR CIRCUIT BREAKER	N/A
31	SBB46 (BN-RD)	10	FUSE - 46 OR CIRCUIT BREAKER	N/A
32	CBB53 (GY-BN)	18	FUSE - 53 OR CIRCUIT BREAKER	N/A
33	CBB66 (BU-WH)	18	FUSE - 66 OR CIRCUIT BREAKER	N/A
33	CBB66 (BU-WH)	20	FUSE - 66 OR CIRCUIT BREAKER	N/A
34	CBB55 (BN-BU)	18	FUSE - 55 OR CIRCUIT BREAKER	N/A
35	CBB56 (BU-GN)	20	FUSE - 56 OR CIRCUIT BREAKER	N/A
36	CBB57 (BN-GN)	20	FUSE - 57 OR CIRCUIT BREAKER	N/A
37	CBB58 (GY-OG)	20	FUSE - 58 OR CIRCUIT BREAKER	N/A
38	*	*	Not Used	N/A
39	CBB67 (GN-BN)	16	FUSE - 67 OR CIRCUIT BREAKER	N/A
40	CBB68 (GY-VT)	16	FUSE - 68 OR CIRCUIT BREAKER	N/A
41	CBB69 (WH-VT)	18	FUSE - 69 OR CIRCUIT BREAKER	N/A
42	CBB70 (YE-GN)	12	FUSE - 70 OR CIRCUIT BREAKER	late production	N/A
42	CBB70 (YE-BU)	14	FUSE - 70 OR CIRCUIT BREAKER	N/A
43	*	*	Not Used	N/A
44	CBB73 (WH-BN)	18	FUSE - 73 OR CIRCUIT BREAKER	N/A
44	CBB73 (WH-BN)	20	FUSE - 73 OR CIRCUIT BREAKER	N/A
45	CBB17 (BN-GN)	22	FUSE - 17 OR CIRCUIT BREAKER	N/A
46	CRH01 (YE-RD)	17	RELAY - HORN	N/A
47	CBB82 (GN)	12	FUSE - 82 OR CIRCUIT BREAKER	N/A
48	CBB83 (GY)	20	FUSE - 83 OR CIRCUIT BREAKER	N/A
49	CBB87 (GN-BU)	10	FUSE - 87 OR CIRCUIT BREAKER	N/A
50	CBB85 (YE)	14	FUSE - 85 OR CIRCUIT BREAKER	N/A
