Connector End View (C1033) - INLINE
Connector Viewer - 150
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C1033 | INLINE | BK | 12C50814B485 | See Below | ||||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|

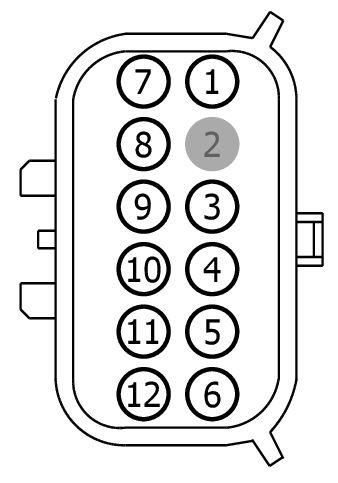

MALE
Harness
12C508
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | RE406 (GY-VT) | 18 | N/A | |||
| 2 | * | * | N/A | |||
| 3 | RE205 (YE-BU) | 17 | N/A | |||
| 4 | RE206 (BU-OG) | 17 | N/A | |||
| 5 | RE207 (GN-VT) | 17 | N/A | |||
| 6 | RE208 (BU) | 17 | N/A | |||
| 7 | VE727 (BU-BN) | 18 | N/A | |||
| 8 | LE238 (GY) | 18 | N/A | |||
| 9 | CE205 (GN-BU) | 17 | N/A | |||
| 10 | CE206 (GY-YE) | 17 | N/A | |||
| 11 | CE207 (VT-GY) | 17 | N/A | |||
| 12 | CE208 (YE-OG) | 17 | N/A | |||

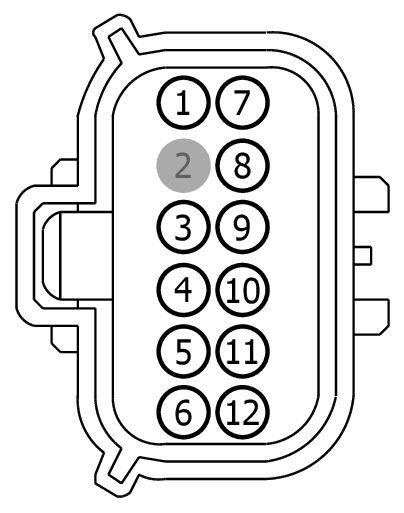

FEMALE
Harness
14B485
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | RE238 (GN-VT) | 18 | N/A | |||
| 2 | * | * | N/A | |||
| 3 | RE205 (YE-BU) | 17 | N/A | |||
| 4 | RE206 (BU-OG) | 17 | N/A | |||
| 5 | RE207 (GN-VT) | 17 | N/A | |||
| 6 | RE208 (BU) | 17 | N/A | |||
| 7 | VE727 (BU-BN) | 18 | N/A | |||
| 8 | LE238 (GY) | 18 | N/A | |||
| 9 | CE205 (GN-BU) | 17 | N/A | |||
| 10 | CE206 (GY-YE) | 17 | N/A | |||
| 11 | CE207 (VT-GY) | 17 | N/A | |||
| 12 | CE208 (YE-OG) | 17 | N/A | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1485
Service Part Number:
HU2Z-14S411-CA
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-1601
Service Part Number:
HU2Z-14S411-CB
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
- Module - Anti-Lock Brake System
- Module - Wigwag Lamps
- Trailer Tow - Vehicle Side
Pigtail Kit Part Number WPT-1544
Service Part Number:
AU2Z-14S411-AMB
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
- Lamp - Front Turn
- Lamp - Headlamp - High/Low Beam
- Mirror - Sideview / Heated
- Module - Battery Energy Control
- Module - Extended Power
- Module - Gear Shift
- Module - Glow Plug
- Module - Transmission Ranger Control
- Trailer Tow - Vehicle Side
Pigtail Kit Part Number WPT-1125
Service Part Number:
AU2Z-14S411-AMA
Gauge:
16
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Connector - Inline
- Mirror - Sideview
