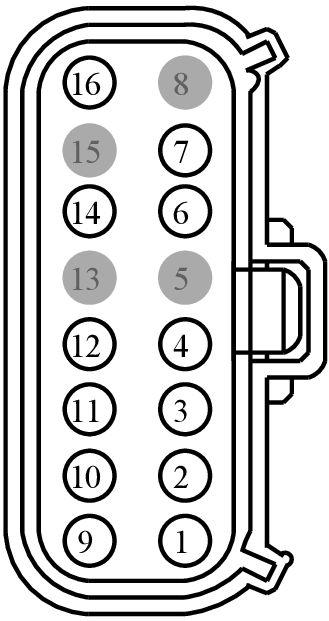

Connector End View (C1021) - HEADLAMP ASSEMBLY LH

Connector Viewer - 150

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1021	HEADLAMP ASSEMBLY LH	BK	14290/91A000	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CLS06 (GN-OG)	20	CTRL MOD. - PARK FRONT LEFT OR FRONT/REAR LEFT	N/A
2	CLF02 (GY-BN)	18	CTRL MOD. - BEAM HIGH LEFT	N/A
3	CLF61 (GY-BU)	20	CTRL MOD. - DAYTIME RUNNING LIGHT LEFT	N/A
4	CBB64 (VT-GN)	20	FUSE - 64 OR CIRCUIT BREAKER	N/A
4	CLS06 (GN-OG)	20	CTRL MOD. - PARK FRONT LEFT OR FRONT/REAR LEFT	FNA with HID, FOE late production	N/A
5	*	*	Not Used	N/A
6	CLF04 (BN-BU)	18	CTRL MOD. - BEAM LOW LEFT	N/A
6	SBB49 (RD)	17	FUSE - 49 OR CIRCUIT BREAKER	FNA with HID	N/A
7	CLS21 (BU-GN)	20	CTRL MOD. - TURN LAMP LEFT FRONT	N/A
8	*	*	Not Used	N/A
9	GD120 (BK-GN)	18	GROUND - FENDER FRONT LEFT	N/A
10	CLF04 (BN-BU)	18	CTRL MOD. - BEAM LOW LEFT	N/A
11	GD120 (BK-GN)	18	GROUND - FENDER FRONT LEFT	N/A
12	GD120 (BK-GN)	20	GROUND - FENDER FRONT LEFT	N/A
13	*	*	Not Used	N/A
14	VLF22 (VT-GN)	20	RESISTOR VARIABLE - HEADLAMP LEVELING	N/A
15	*	*	Not Used	N/A
16	GD120 (BK-GN)	18	GROUND - FENDER FRONT LEFT	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1279

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ADA

Gauge:

16

Pin material:

Silver

Cavities:

16

Vehicle Uses:

• Lamp - Headlamp - High/Low Beam
• Mating Connector WPT-1404
• Module - Heated Seat (driver)
• Module - Transfer Case Shift Control
