Connector End View (C1017) - INLINE

Connector Viewer - 150

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C1017	INLINE	BK	14290/91A00014290	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

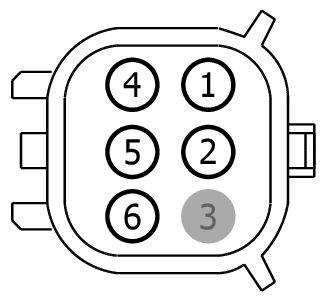

MALE

Harness

14290/91A000

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBB56 (BU-GN)	20	N/A
2	VDB26 (GY-BU)	20	N/A
3	*	*	N/A
4	CBB56 (BU-GN)	20	N/A
5	VDB25 (GN-OG)	20	N/A
	6	GD122 (BK)	16	N/A

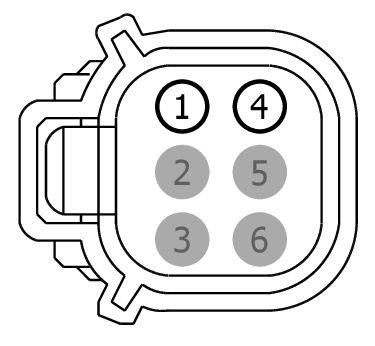

FEMALE

Harness

14290

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBB56 (BU-GN)	20	N/A
2	*	*	N/A
3	*	*	N/A
4	CBB56 (BU-GN)	20	N/A
5	*	*	N/A
	6	*	*	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1426

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-TA

Gauge:

16

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Camera - Reverse Park Aid
• Lamp - Park/Turn/Stop
• Sensor - Coolant Temperature
• Sensor - O2 (HEGO/ EGO)

Pigtail Kit Part Number WPT-971

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-FEAB

Gauge:

14

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Connector - Inline
• Lamp - Headlamp - High/Low Beam
• Lamp - Park/Turn/Stop
• Motor - Engine Cooling Fan
• Motor - Running Board
