Connector End View (C1015) - INLINE

Connector Viewer - 150

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C1015	INLINE	14B44614290/91A000			See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

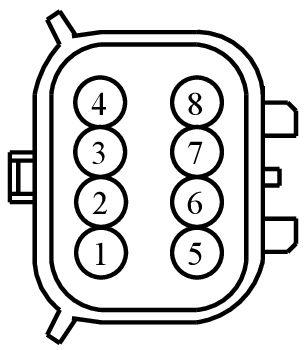

MALE

Harness

14B446

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBB61 (BU-GY)	20	N/A
2	VMF04 (BN-BU)	20	N/A
3	VMF05 (GY-BU)	20	N/A
4	*	*	N/A
5	*	*	N/A
6	*	*	N/A
7	*	*	N/A
	8	GD120 (BK-GN)	20	N/A

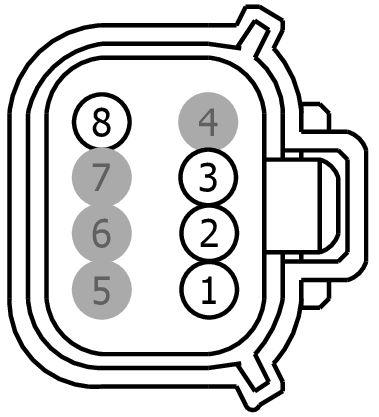

FEMALE

Harness

14290/91A000

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBB61 (BU-GY)	18	N/A
2	VMF04 (BN-BU)	20	N/A
3	VMF05 (GY-BU)	20	N/A
4	*	*	N/A
5	*	*	N/A
6	*	*	N/A
7	*	*	N/A
	8	GD124 (BK-VT)	20	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1671

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-CB

Gauge:

16

Pin material:

Silver

Cavities:

8

Vehicle Uses:

• Connector - Inline
• Lamp - Park/Turn/Stop
• Mirror - Sideview / Heated

Pigtail Kit Part Number WPT-1614

Service Part Number:

FU2Z-14S411-BB

Gauge:

16

Pin material:

Silver

Cavities:

8

Vehicle Uses:

• Connector - Inline
• Lamp - Reverse
• Mirror - Sideview / Heated
