Connector End View (C1014) - INLINE

Connector Viewer - 150

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C1014	INLINE	14290/91A0003C221			See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

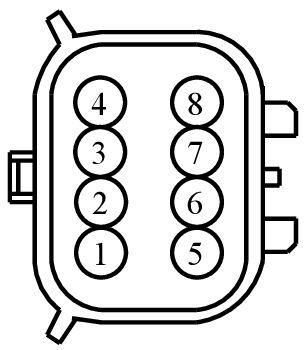

MALE

Harness

14290/91A000

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBB65 (WH-OG)	20	N/A
2	VDB25 (GN-OG)	20	N/A
3	VDB26 (GY-BU)	20	N/A
4	VE722 (BN)	20	N/A
5	RE407 (YE-VT)	20	N/A
6	LE423 (GN-VT)	20	N/A
7	VE787 (WH-OG)	20	N/A
	8	RE407 (YE-VT)	20	N/A

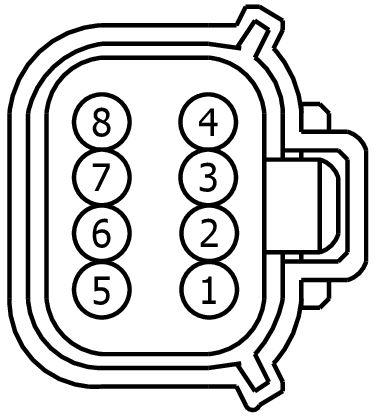

FEMALE

Harness

3C221

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBB65 (WH-OG)	20	N/A
2	VDB25 (GN-OG)	20	N/A
3	VDB26 (GY-BU)	20	N/A
4	VE722 (BN)	20	N/A
5	RE407 (YE-VT)	20	N/A
6	LE423 (GN-VT)	20	N/A
7	VE787 (WH-OG)	20	N/A
	8	RE407 (YE-VT)	20	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1671

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-CB

Gauge:

16

Pin material:

Silver

Cavities:

8

Vehicle Uses:

• Connector - Inline
• Lamp - Park/Turn/Stop
• Mirror - Sideview / Heated

Pigtail Kit Part Number WPT-1614

Service Part Number:

FU2Z-14S411-BB

Gauge:

16

Pin material:

Silver

Cavities:

8

Vehicle Uses:

• Connector - Inline
• Lamp - Reverse
• Mirror - Sideview / Heated
