Connector End View (C1010) - INLINE

Connector Viewer - 150

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C1010	INLINE	BK	9F66612C508	See Below

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size

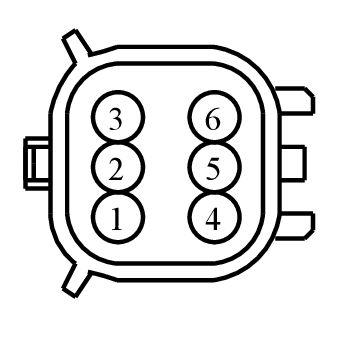

MALE

Harness

9F666

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CE205 (GN-BU)	.75	N/A
2	RE205 (YE-BU)	.75	N/A
3	CE206 (GY-YE)	.75	N/A
4	RE206 (BU-OG)	.75	N/A
5	CE207 (VT-GY)	.75	N/A
	6	RE207 (GN-VT)	.75	N/A

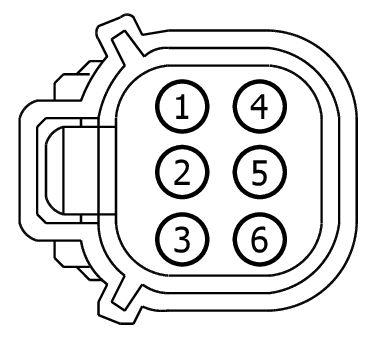

FEMALE

Harness

12C508

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CE205 (GN-BU)	18	N/A
2	CE206 (GY-YE)	18	N/A
3	CE207 (VT-GY)	18	N/A
4	RE205 (YE-BU)	18	N/A
5	RE206 (BU-OG)	18	N/A
	6	RE207 (GN-VT)	18	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1426

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-TA

Gauge:

16

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Camera - Reverse Park Aid
• Lamp - Park/Turn/Stop
• Sensor - Coolant Temperature
• Sensor - O2 (HEGO/ EGO)

Pigtail Kit Part Number WPT-971

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-FEAB

Gauge:

14

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Connector - Inline
• Lamp - Headlamp - High/Low Beam
• Lamp - Park/Turn/Stop
• Motor - Engine Cooling Fan
• Motor - Running Board
