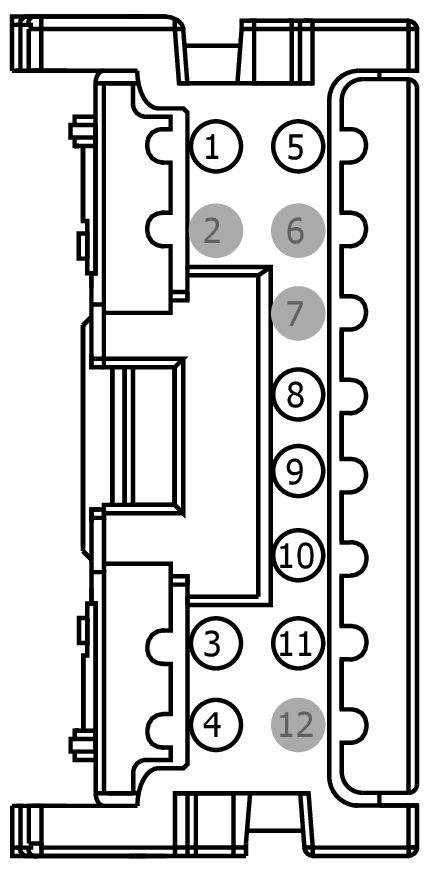

Connector End View (C9224) - IMAGE PROCESSING MODULE A (IPMA)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C9224	IMAGE PROCESSING MODULE A (IPMA)	BK	14G540	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RRB08 (BU-WH)	22	CTRL MOD. - LANE DEPARTURE WARNING # HEATER FRONT WINDOW -	N/A
2	*	*	Not Used	N/A
3	VMF04 (BN-BU)	22	CTRL MOD. - FORWARD SENSING # FORWARD LOOKING RADAR CAN BUS HIGH	N/A
4	CBP09 (VT-GY)	22	FUSE - 9 OR CIRCUIT BREAKER	N/A
5	GD238 (BK)	22	GROUND - COWL SIDE/PILLAR A RIGHT	LHD	N/A
5	GD233 (BK)	22	GROUND - COWL SIDE/PILLAR A LEFT	RHD	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	CRB08 (BU-GY)	22	CTRL MOD. - LANE DEPARTURE WARNING # HEATER FRONT WINDOW +	N/A
9	VDB26 (GY-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	N/A
10	VDB25 (GN-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	N/A
11	VMF05 (GY-BU)	22	CTRL MOD. - FORWARD SENSING # FORWARD LOOKING RADAR CAN BUS LOW	N/A
12	*	*	Not Used	N/A
