Connector End View (C9075A) - LUGGAGE COMPARTMENT LAMP

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C9075A	LUGGAGE COMPARTMENT LAMP	BK	14405	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VLN33 (GY-VT)	18	CTRL MOD. - INTERIOR/COURTESY LAMP DIMMING (THEATRE)	N/A

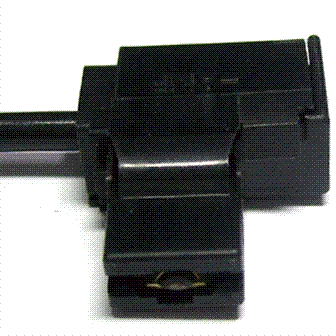

Available Pigtail Kits

Pigtail Kit Part Number WPT-1022

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-DXAB

Gauge:

12

Pin material:

Tin

Cavities:

1

Vehicle Uses:

• Switch - Heated Back Light (Rear Defrost)
• Switch - Park Brake
• Terminal - Rear Window Defroster Grid
