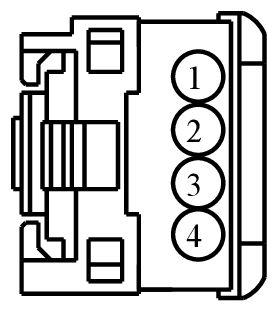

Connector End View (C9041) - GLASS ROOF PANEL BLIND SWITCH
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C9041 | GLASS ROOF PANEL BLIND SWITCH | BK | 14B599 | part# N/A | Not Available |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBB16 (BU-GN) | 18 | FUSE - 16 OR CIRCUIT BREAKER | N/A | ||||
| 2 | CPR31 (VT-BN) | 20 | SWITCH - MOON/SUN ROOF OPEN | N/A | ||||
| 3 | CPR40 (YE-OG) | 20 | SWITCH - MOON/SUN ROOF CLOSE | N/A | ||||
| 4 | GD238 (BK-WH) | 18 | GROUND - COWL SIDE/PILLAR A RIGHT | N/A | ||||
