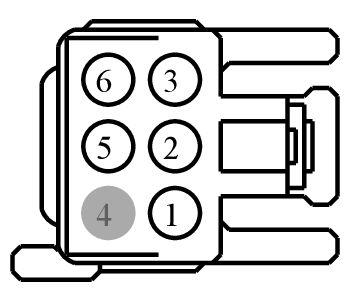

Connector End View (C9040) - GLASS ROOF PANEL BLIND MODULE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C9040	GLASS ROOF PANEL BLIND MODULE	LT GY	14335	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBB50 (YE-RD)	22	FUSE - 50 OR CIRCUIT BREAKER	N/A
2	CBB16 (BU-GN)	17	FUSE - 16 OR CIRCUIT BREAKER	N/A
3	GD238 (BK-WH)	17	GROUND - COWL SIDE/PILLAR A RIGHT	N/A
4	*	*	Not Used	N/A
5	CPR40 (YE-OG)	20	SWITCH - MOON/SUN ROOF CLOSE	N/A
6	CPR31 (VT-BN)	20	SWITCH - MOON/SUN ROOF OPEN	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-962

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z- 14S411-JBB

Gauge:

14

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Mating Connector WPT-1299
• Switch - Gear Shift Select/Neutral Safety
• Switch - Overdrive Cancel
• Switch - Power Sliding Door
