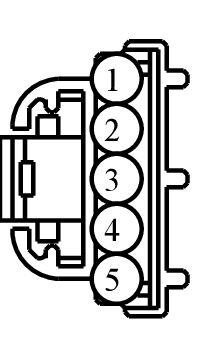

Connector End View (C9039) - REAR VIEW CAMERA DISPLAY MIRROR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C9039	REAR VIEW CAMERA DISPLAY MIRROR	BK	15A657	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBP09 (VT-GY)	22	FUSE - 9 OR CIRCUIT BREAKER	N/A
2	CLS10 (GN-BN)	22	CTRL MOD. - REVERSE LEFT OR COMMON	N/A
3	GD233 (BK)	22	GROUND - COWL SIDE/PILLAR A LEFT	N/A
4	VMP19 (WH-GN)	22	CAMERA - PARKING AID REAR VIDEO +	N/A
5	RMP19 (BU-GY)	22	CAMERA - PARKING AID REAR VIDEO -	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-983

Courtesy of FORD MOTOR COMPANY

Service Part Number:

6U2Z-14S411-SB

Gauge:

18

Pin material:

Silver

Cavities:

5

Vehicle Uses:

• Module - Heads Up Display
• Switch - Overdrive Cancel
• Switch - Power Window - LH - Rear
• Switch - Power Window - Passenger (Front)
