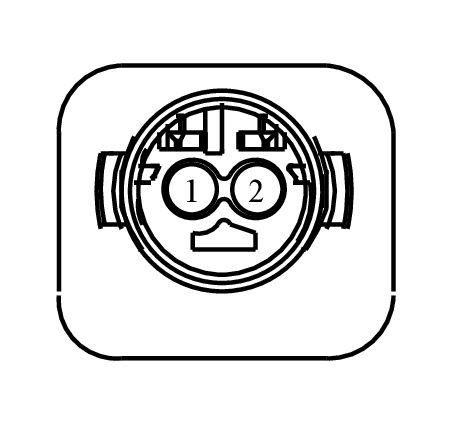

Connector End View (C9019B) - PASSENGER SIDE AIR CURTAIN

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C9019B	PASSENGER SIDE AIR CURTAIN	GN	14A005	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CR111 (BN-WH)	20	CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE +	N/A
2	RR111 (YE-VT)	20	CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE -	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1221

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BDA

Gauge:

20

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses:

• Squib - Airbag (Passenger)
