Connector End View (C4904) - INLINE
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C4904 | INLINE | none | 13B57815A417 | See Below | ||||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|

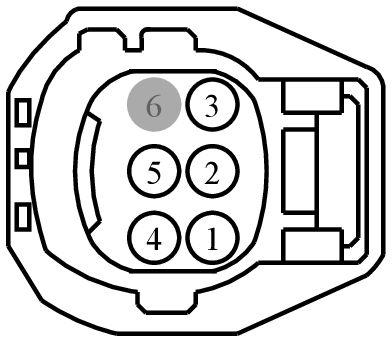

MALE
Harness
13B578
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | GD351 (BK-GN) | 12 | N/A | |||
| 2 | GD351 (BK-GN) | 12 | N/A | |||
| 3 | GD351 (BK-GN) | 12 | N/A | |||
| 4 | SAT22 (WH-RD) | 12 | N/A | |||
| 5 | CAT23 (GY-YE) | 12 | N/A | |||
| 6 | * | * | N/A | |||

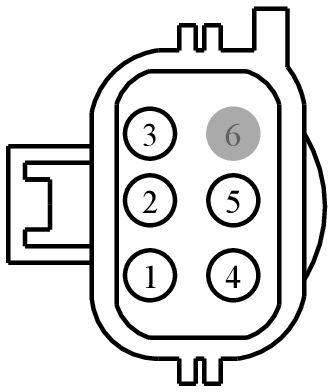

FEMALE
Harness
15A417
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | GD351 (BK-GN) | 12 | N/A | |||
| 2 | GD351 (BK-GN) | 12 | N/A | |||
| 3 | GD351 (BK-GN) | 12 | N/A | |||
| 4 | SAT22 (WH-RD) | 12 | N/A | |||
| 5 | CAT23 (GY-YE) | 12 | N/A | |||
| 6 | * | * | N/A | |||

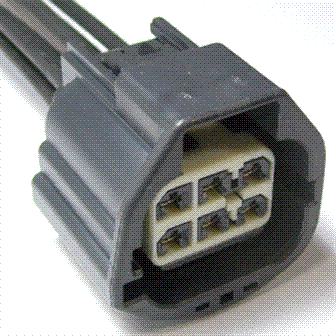

Available Pigtail Kits
Pigtail Kit Part Number WPT-163
Service Part Number:
1U2Z-14S411-BUA
Gauge:
14
Pin material:
Tin
Cavities:
6
Vehicle Uses:
- Motor - Windshield Wiper
Pigtail Kit Part Number WPT-1114
Service Part Number:
AU2Z-14S411-BKA
Gauge:
12
Pin material:
Tin
Cavities:
6
Vehicle Uses:
- Trailer Tow - Vehicle Side
Pigtail Kit Part Number WPT-1495
Service Part Number:
AU2Z-14S411-BKB
Gauge:
14
Pin material:
Tin
Cavities:
6
Vehicle Uses:
- Trailer Tow - Vehicle Side
