Connector End View (C4901) - INLINE

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C4901	INLINE	none	13B57815A417	See Below

Terminal Part Number	Service Part Number	Size

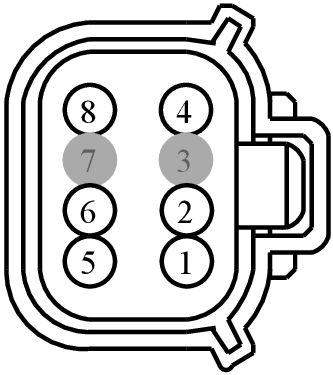

MALE

Harness

13B578

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CAT06 (YE)	16	N/A
2	CAT07 (GY-OG)	16	N/A
3	*	*	N/A
4	CAT09 (GN)	16	N/A
6	CAT10 (RD)	16	N/A
7	CAT20 (VT-WH)	16	13B578 - double crimp	N/A
	8	CAT03 (GY-BN)	16	N/A

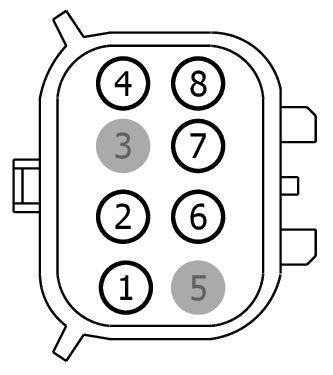

FEMALE

Harness

15A417

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CAT06 (YE)	16	N/A
2	CAT07 (GY-OG)	16	N/A
3	*	*	N/A
4	CAT09 (GN)	16	N/A
5	CAT21 (YE-GN)	16	15A417	N/A
6	CAT10 (RD)	16	N/A
	8	CAT03 (GY-BN)	16	N/A

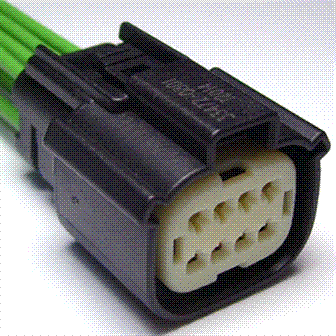

Available Pigtail Kits

Pigtail Kit Part Number WPT-1605

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-DC

Gauge:

16

Pin material:

Silver

Cavities:

8

Vehicle Uses:

• Connector - Inline
• Lamp - CHMSL (Center High Mount Stop Lamp)
• Lamp - Flashing LED
• Lamp - Park/Turn/Stop
• Mirror - Sideview
• Mirror - Sideview / Heated
• Module - Anti-Lock Brake System

Pigtail Kit Part Number WPT-1524

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ALB

Gauge:

18

Pin material:

Silver

Cavities:

8

Vehicle Uses:

• Actuator - Door Lock - Decklid/Liftgate
• Actuator - Door Lock - LH - Sliding Door
• Actuator - Door Lock - RH - Sliding Door
• Connector - Inline
• Inflator - Safety Belt

Pigtail Kit Part Number WPT-1276

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ALA

Gauge:

18

Pin material:

Silver

Cavities:

8

Vehicle Uses:

• Connector - Inline
