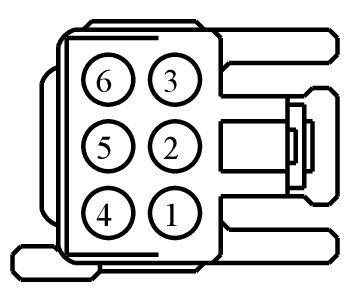

Connector End View (C4471) - REAR LAMP ASSEMBLY LH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4471	REAR LAMP ASSEMBLY LH	LT GY	14A005	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	GD349 (BK-GY)	17	GROUND - PILLAR D LEFT	N/A
2	CLS51 (WH-GN)	20	CTRL MOD. - STOP/TURN LEFT OUTBOARD	N/A
3	CLS08 (VT-GN)	20	CTRL MOD. - PARK REAR LEFT	N/A
4	CLS23 (GY-OG)	20	CTRL MOD. - TURN LAMP LEFT REAR	N/A
5	CLS10 (GN-BN)	18	CTRL MOD. - REVERSE LEFT OR COMMON	N/A
6	CLS37 (WH-BU)	18	CTRL MOD. - FOG LAMP REAR (RIGHT OR COMMON)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-962

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z- 14S411-JBB

Gauge:

14

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Mating Connector WPT-1299
• Switch - Gear Shift Select/Neutral Safety
• Switch - Overdrive Cancel
• Switch - Power Sliding Door
