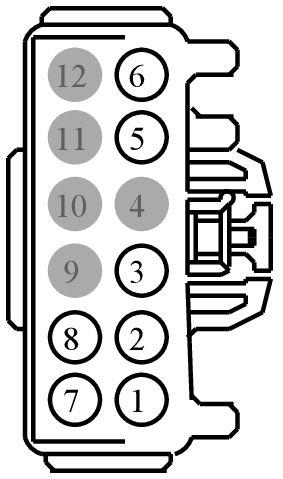

Connector End View (C4397C) - TRAILER TOW MODULE
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C4397C | TRAILER TOW MODULE | LT GY | 15A417 | 14489 | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CAT06 (YE) | 16 | CTRL MOD. - TRAILER TOW # TURN SIGNAL LEFT (COLOR TO SAE 1239) | N/A | ||||
| 2 | CAT09 (GN) | 16 | CTRL MOD. - TRAILER TOW # TURN SIGNAL RIGHT (COLOR TO SAE 1239) | N/A | ||||
| 3 | CAT20 (VY-WH) | 16 | CTRL MOD. - TRAILER TOW # PARK LAMPS LEFT | N/A | ||||
| 3 | CAT21 (YE-GN) | 16 | CTRL MOD. - TRAILER TOW # PARK LAMPS RIGHT | N/A | ||||
| 4 | * | * | Not Used | N/A | ||||
| 5 | CAT03 (GY-BN) | 16 | CTRL MOD. - TRAILER TOW # BACKUP LAMPS | N/A | ||||
| 6 | CAT23 (GY-YE) | 12 | CTRL MOD. - TRAILER TOW # POWER IGNITION ON | N/A | ||||
| 7 | CAT10 (RD) | 16 | CTRL MOD. - TRAILER TOW # STOP LAMPS INDEPENDENT (COLOR TO SAE 1239) | N/A | ||||
| 8 | CAT07 (GY-OG) | 16 | CTRL MOD. - TRAILER TOW # REAR FOG LAMP | N/A | ||||
| 9 | * | * | Not Used | N/A | ||||
| 10 | * | * | Not Used | N/A | ||||
| 11 | * | * | Not Used | N/A | ||||
| 12 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-396
Service Part Number:
3U2Z-14S411-BKA
Gauge:
12
Pin material:
Tin
Cavities:
12
Vehicle Uses:
- Module - Liftgate
- Switch - Headlamp
- Switch - Seat (driver)
- Switch - Seat (passenger)
