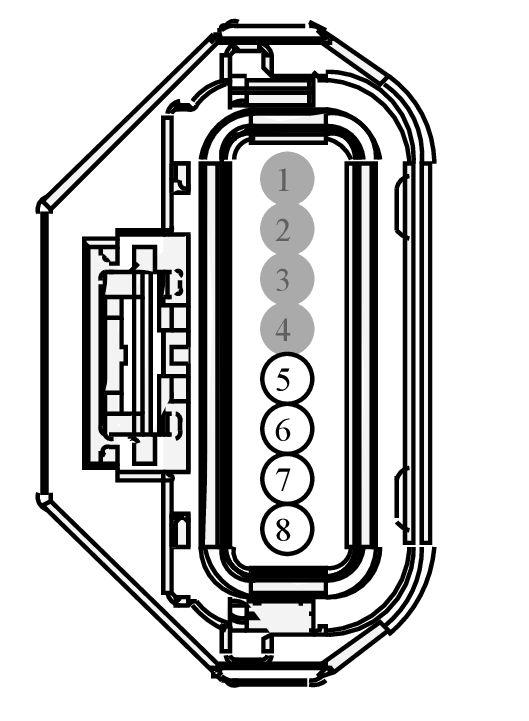

Connector End View (C4369) - SIDE OBSTACLE DETECTION CONTROL MODULE LH (SODL)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4369	SIDE OBSTACLE DETECTION CONTROL MODULE LH (SODL)	BK	15K868	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	CBB61 (BU-GY)	18	FUSE - 61 OR CIRCUIT BREAKER	N/A
6	VDB06 (GY-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	N/A
7	VDB07 (VT-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	N/A
8	GD351 (BK-GN)	18	GROUND - PILLAR D RIGHT	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1625

Courtesy of FORD MOTOR COMPANY

Service Part Number:

LU2Z-14S411-DA

Gauge:

20

Pin material:

Silver

Cavities:

8

Vehicle Uses:

• Module - Side Obstacle Detection
• Sensor - Blind Spot Detection
