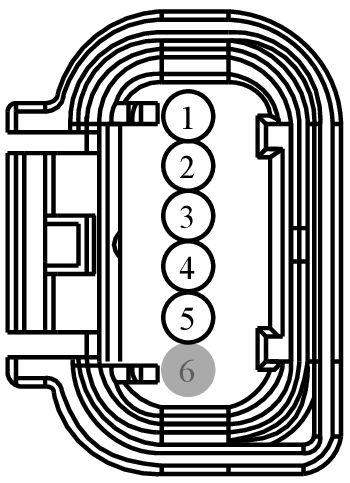

Connector End View (C4357) - REAR PARKING AID CAMERA

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4357	REAR PARKING AID CAMERA	BK	17N400/15B484	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBB61 (BK)	20	FUSE - 61 OR CIRCUIT BREAKER	liftgate	N/A
1	CBB61 (BU-GY)	20	FUSE - 61 OR CIRCUIT BREAKER	N/A
2	VDN14 (YE-VT)	22	CTRL MOD. - LIN BUS # BCM 6	N/A
2	VDN14 (BK)	22	CTRL MOD. - LIN BUS # BCM 6	liftgate	N/A
3	RMP19 (BK)	22	CAMERA - PARKING AID REAR VIDEO -	liftgate	N/A
3	RMP19 (BU-GY)	22	CAMERA - PARKING AID REAR VIDEO -	N/A
4	VMP19 (WH-GN)	22	CAMERA - PARKING AID REAR VIDEO +	N/A
4	VMP19 (BK)	22	CAMERA - PARKING AID REAR VIDEO +	liftgate	N/A
5	DMP19 (BARE)	22	CAMERA - PARKING AID REAR VIDEO D	N/A
6	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1556

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AEB

Gauge:

20

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Camera - Front
• Camera - Reverse Park Aid

Pigtail Kit Part Number WPT-1280

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AEA

Gauge:

20

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Camera - Reverse Park Aid
