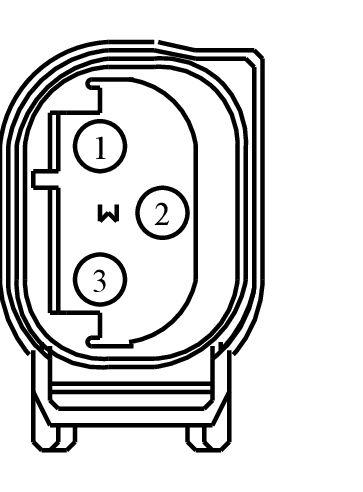

Connector End View (C4353) - LICENSE LAMPS/LIFTGATE RELEASE SWITCH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4353	LICENSE LAMPS/LIFTGATE RELEASE SWITCH	BK	17N400	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	GD352 (BK)	20	GROUND - PILLAR D RIGHT # 2ND POINT	N/A
2	CPR63 (BK)	22	SWITCH - POWER LIFTGATE/DECKLID # OPEN/CLOSE	N/A
3	CLS05 (BK)	20	CTRL MOD. - PARK LAMPS 1	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1289

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-RB

Gauge:

20

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses:

• Lamp - License
• Sensor - Brake Booster Travel
• Sensor - Fuel Rail Pressure
• Sensor - Fuel Tank Pressure Transducer
• Sensor - Reverse Park Aide (RPA)
• Sensor - Yaw
• Switch - Courtesy Lamp - Liftgate
