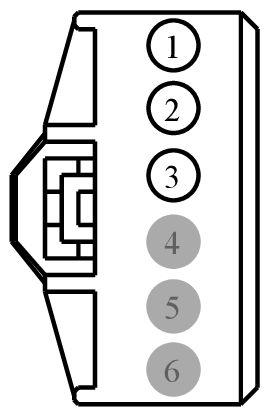

Connector End View (C4339) - LIFTGATE LATCH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4339	LIFTGATE LATCH	NA	17N400	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPL17 (BK)	20	CTRL MOD. - DOOR LOCK # LIFTGATE/DECKLID/CARGO UNLOCK	N/A
2	GD352 (BK)	16	GROUND - PILLAR D RIGHT # 2ND POINT	N/A
3	CPL44 (BK)	20	SWITCH - LIFTGATE/DECKLID/CARGO # AJAR	N/A
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A

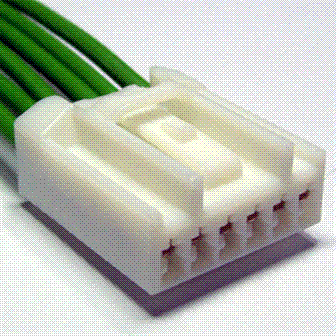

Available Pigtail Kits

Pigtail Kit Part Number WPT-1119

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-AVA

Gauge:

16

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Switch - Deck Lid / Lift Gate Ajar
