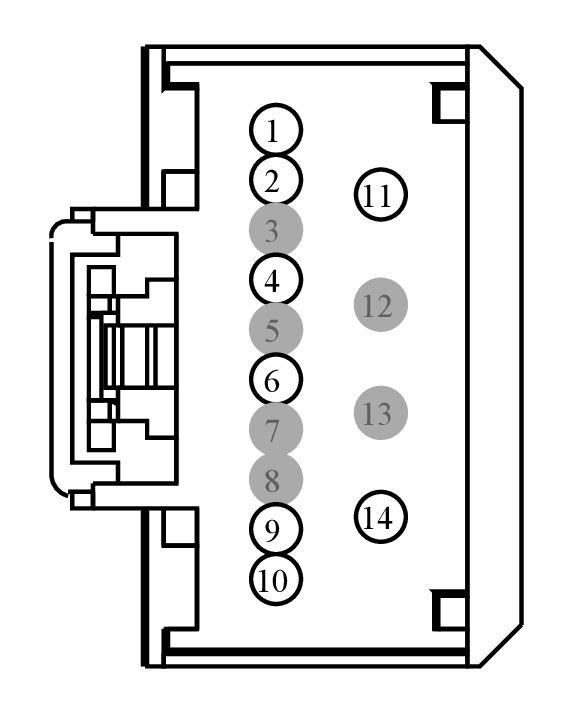

Connector End View (C4210) - DC/AC INVERTER MODULE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4210	DC/AC INVERTER MODULE	BN	14A005	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RYA03 (BU-BN)	22	CTRL MOD. - DC/AC INVERTER # LED INDICATOR -	N/A
2	LYA03 (YE-VT)	22	CTRL MOD. - DC/AC INVERTER # LED INDICATOR +	N/A
3	*	*	Not Used	N/A
4	HYA01 (OG-GN)	18	CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT A (AC A)	N/A
5	*	*	Not Used	N/A
6	HYA02 (OG-WH)	18	CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT B (AC B)	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	VDN14 (YE-VT)	22	CTRL MOD. - LIN BUS # BCM 6	N/A
10	CBP06 (WH-BU)	20	FUSE - 6 OR CIRCUIT BREAKER	N/A
11	GD360 (BK-GN)	12	GROUND - ROCKER PANEL REAR RIGHT	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	SBB34 (YE-RD)	12	FUSE - 34 OR CIRCUIT BREAKER	N/A

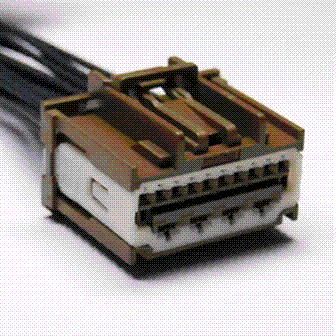

Available Pigtail Kits

Pigtail Kit Part Number WPT-1552

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-ANA

Gauge:

14 20

Pin material:

Tin

Cavities:

14

Vehicle Uses:

• Inverter - DC to AC
• Radio - Amplifier
• Speaker - Subwoofer
