Connector End View (C4198) - LUGGAGE COMPARTMENT LAMP, LEFT

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4198	LUGGAGE COMPARTMENT LAMP, LEFT	BK	14A005	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VLN33 (GY-VT)	20	CTRL MOD. - INTERIOR/COURTESY LAMP DIMMING (THEATRE)	N/A
2	GD238 (BK-WH)	20	GROUND - COWL SIDE/PILLAR A RIGHT	LHD	N/A
2	GD233 (BK)	20	GROUND - COWL SIDE/PILLAR A LEFT	RHD	N/A

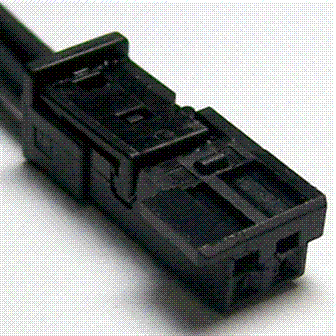

Available Pigtail Kits

Pigtail Kit Part Number WPT-1195

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-ADA

Gauge:

18

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Lamp - Storage Compartment - Trunk
